TJM UPS GeTX Online GXK-1-1-3-CO, 3KV (3000VA) HF LCD battery 12-9 *6

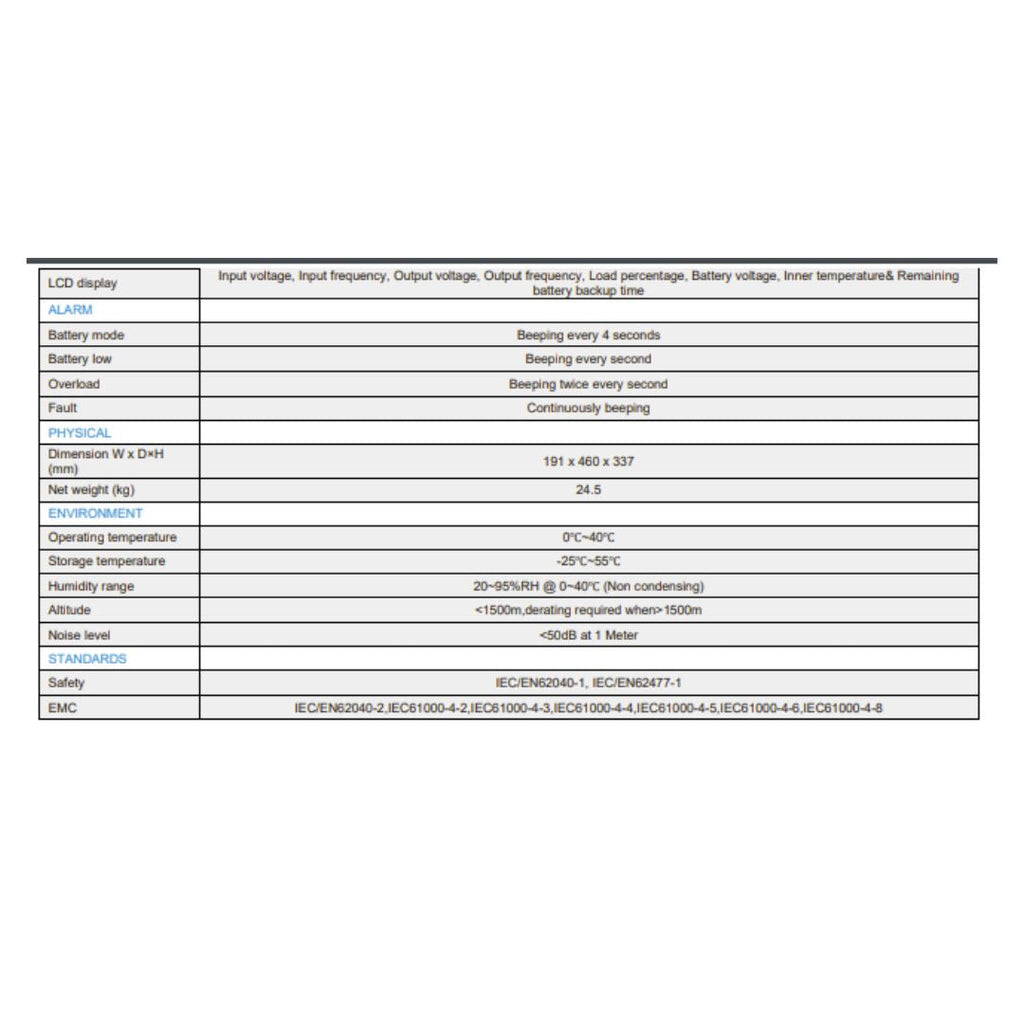

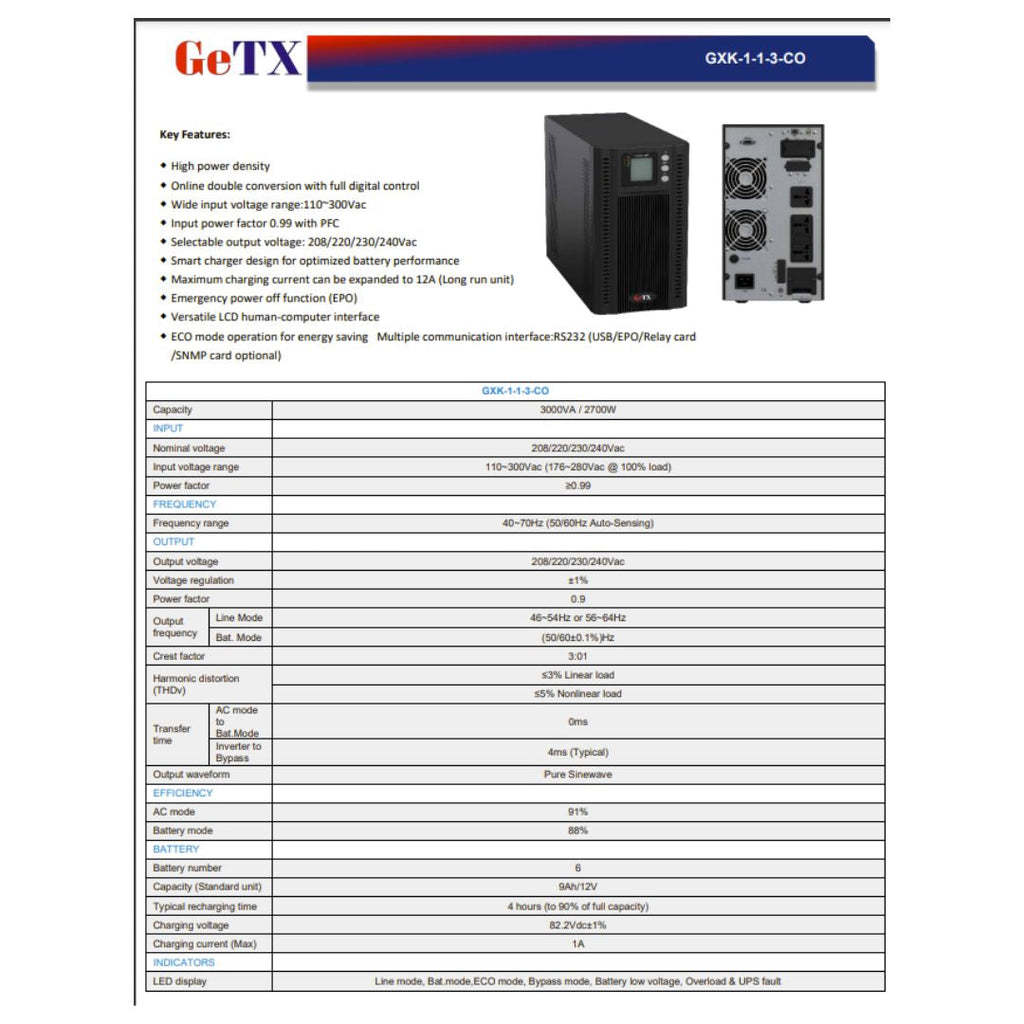

UPS Specification

• Model: GeTX Online GXK‑1‑1‑3‑CO
• Type: Online Double‑Conversion UPS
• Capacity: 3 kVA / 3000 VA
• Topology: High‑Frequency Online UPS
• Display: LCD panel for real‑time monitoring
• Battery:
 – Type: Sealed Lead‑Acid (12 V / 9 Ah)
 – Configuration: 6 × batteries
 – Hot‑swappable design
• Input:
 – Voltage: 220–240 V AC
 – Frequency: 50/60 Hz auto‑sensing
 – Power Factor: ≥0.99
• Output:
 – Voltage: 220–240 V AC
 – Frequency: 50/60 Hz ±0.1 Hz (online mode)
 – Waveform: Pure sine wave
 – Efficiency: ~94% (online mode)
• Protection: Overload, short circuit, over‑temperature, surge protection
• Features:
 – LCD monitoring for voltage, load, battery status
 – Intelligent battery management system
 – Cold start capability
 – SNMP/USB/RS‑232 communication ports
 – Automatic bypass function
• Dimensions (W×D×H): ~190 × 460 × 340 mm
• Weight: ~28 kg (with batteries)
• Warranty: 2 years (may vary by region)
