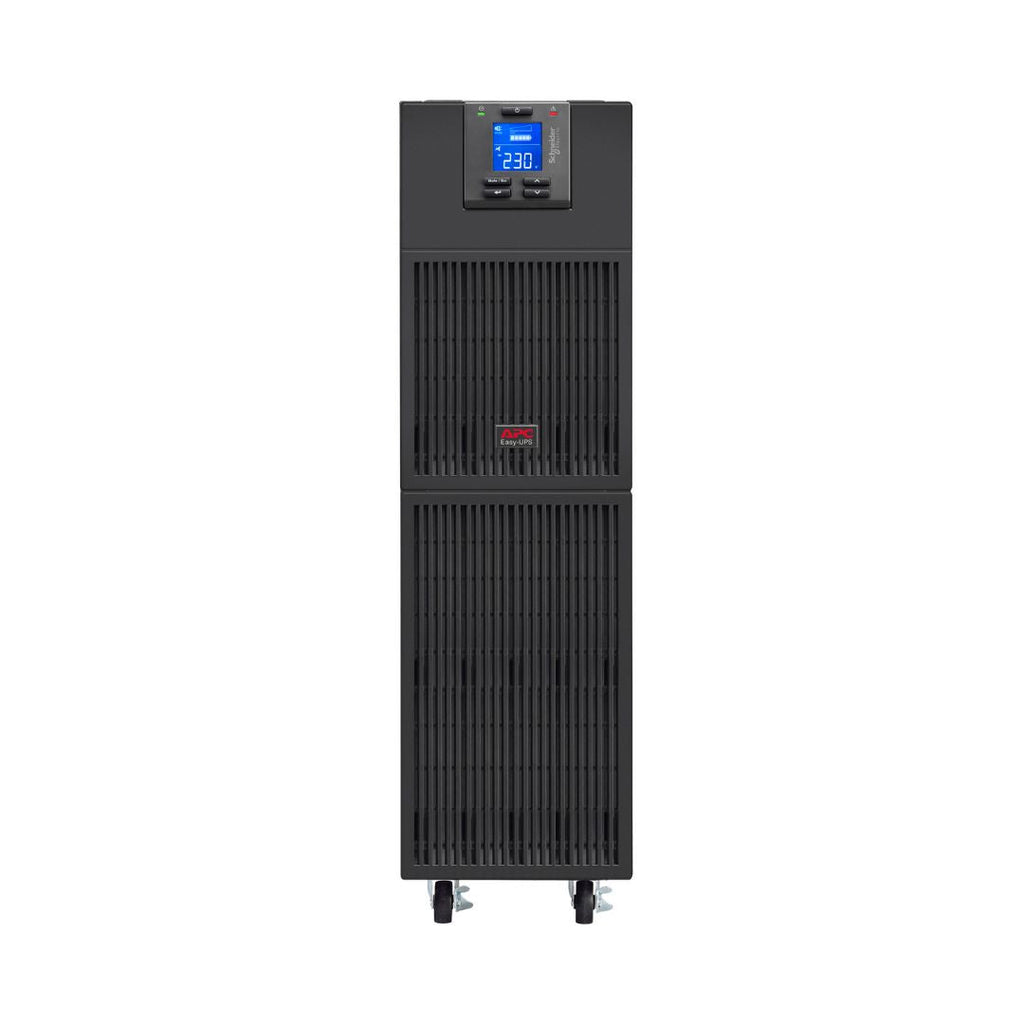

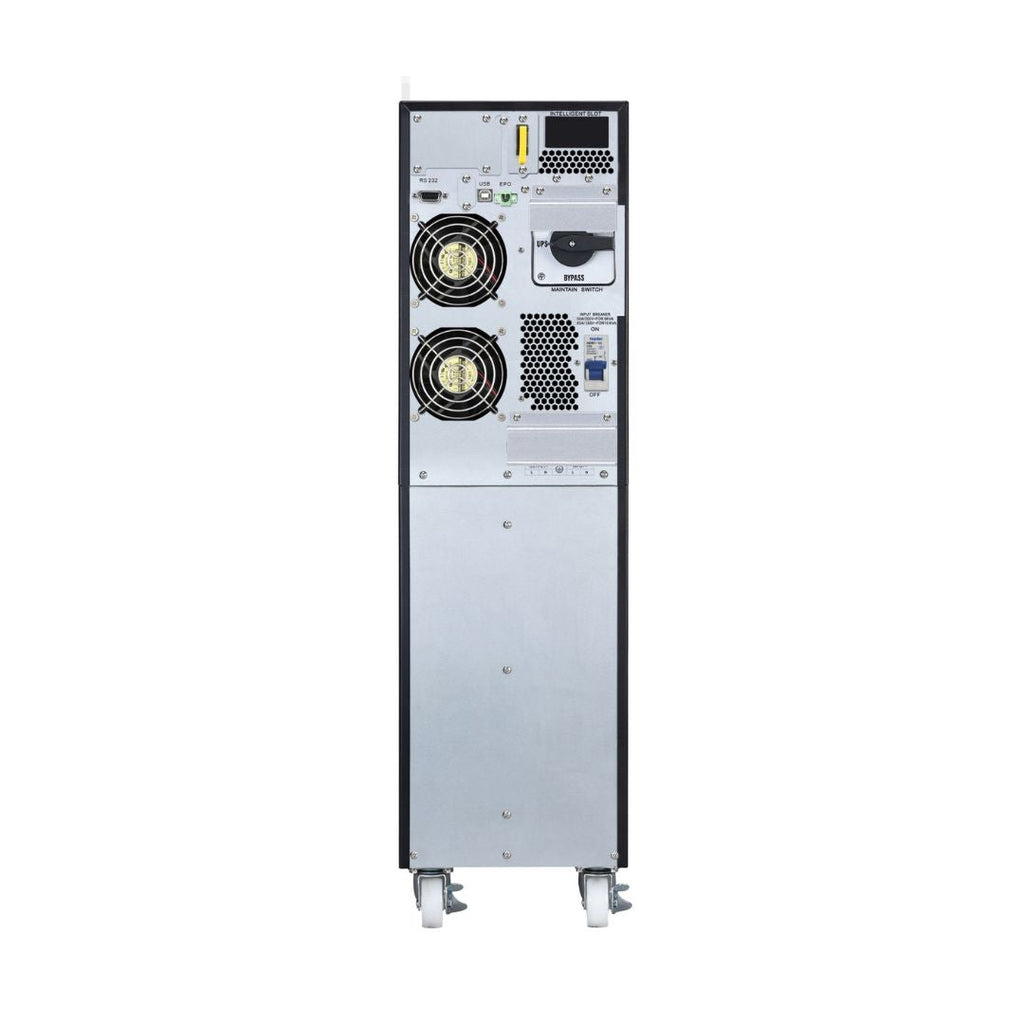

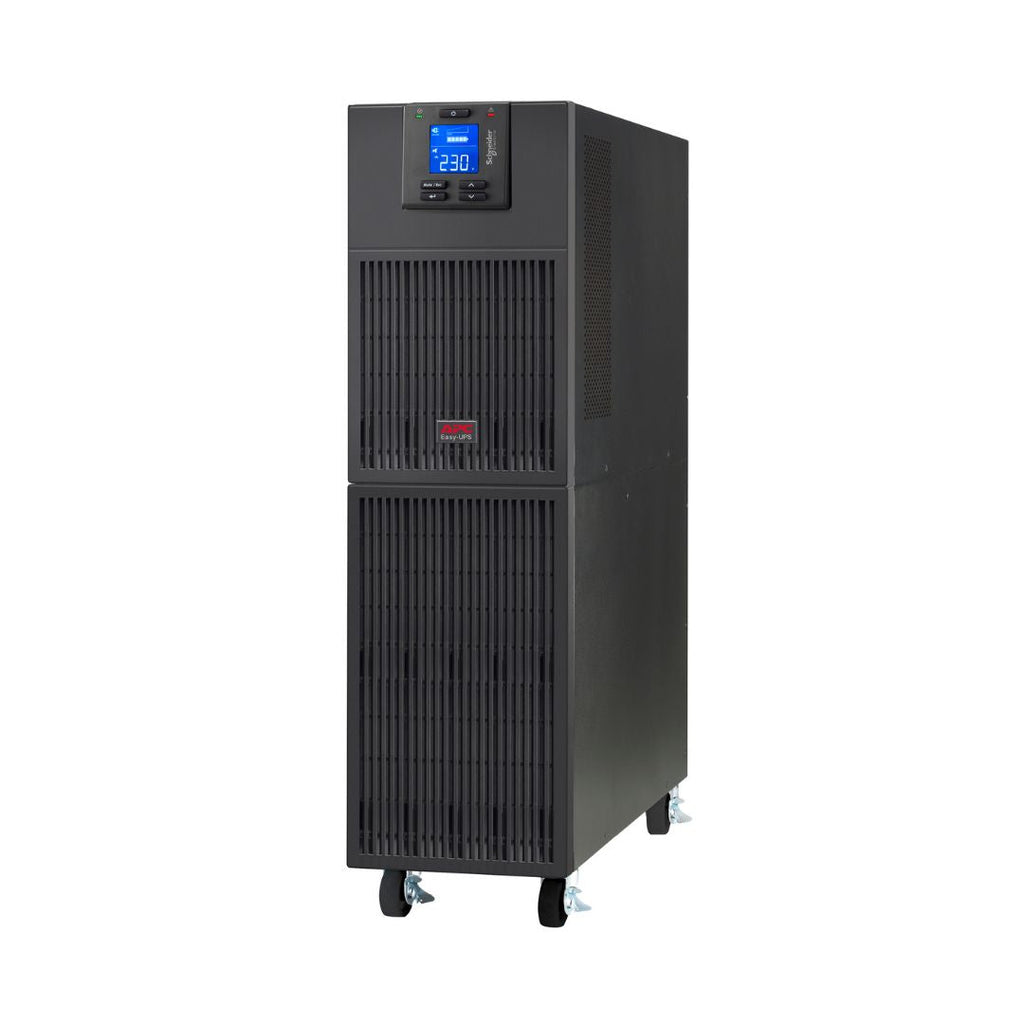

TJM UPS APC Easy Online SRV 10000VA 10KV 230V

• Model: APC Easy Online SRV 10000VA 230V

• Type: Online Double‑Conversion UPS
 • Capacity: 10000 VA / 10000 W
 • Input Voltage: 230 V (single‑phase)
 • Input Voltage Range: 110 – 300 V
 • Input Frequency: 40 – 70 Hz (auto‑sensing)
 • Output Voltage: 230 V ± 1%
 • Output Frequency: 50/60 Hz ± 0.1 Hz (synchronized with mains)
 • Output Waveform: Pure Sine Wave
 • Efficiency: Up to 94% (online mode)
 • Power Factor: 1.0 (unity)
 • Battery Type: Sealed Lead‑Acid, maintenance‑free
 • Battery Voltage: 240 V DC
 • Backup Time: Scalable with external battery packs
 • Recharge Time: ~5 hours to 90% capacity
 • Interfaces: RS‑232, USB, Smart Slot (optional SNMP card)
 • Display: LCD panel with status indicators
 • Protection: Overload, short circuit, surge, and battery deep discharge protection
 • Dimensions: 455 × 190 × 337 mm (tower)
 • Weight: ~65 kg
 • Noise Level: < 55 dB at 1 meter
 • Features:
  – Online double‑conversion technology for consistent power quality
  – Hot‑swappable battery design
  – Scalable runtime with external battery packs
  – Intelligent battery management for extended lifespan
  – Compatible with APC management software for monitoring and control
