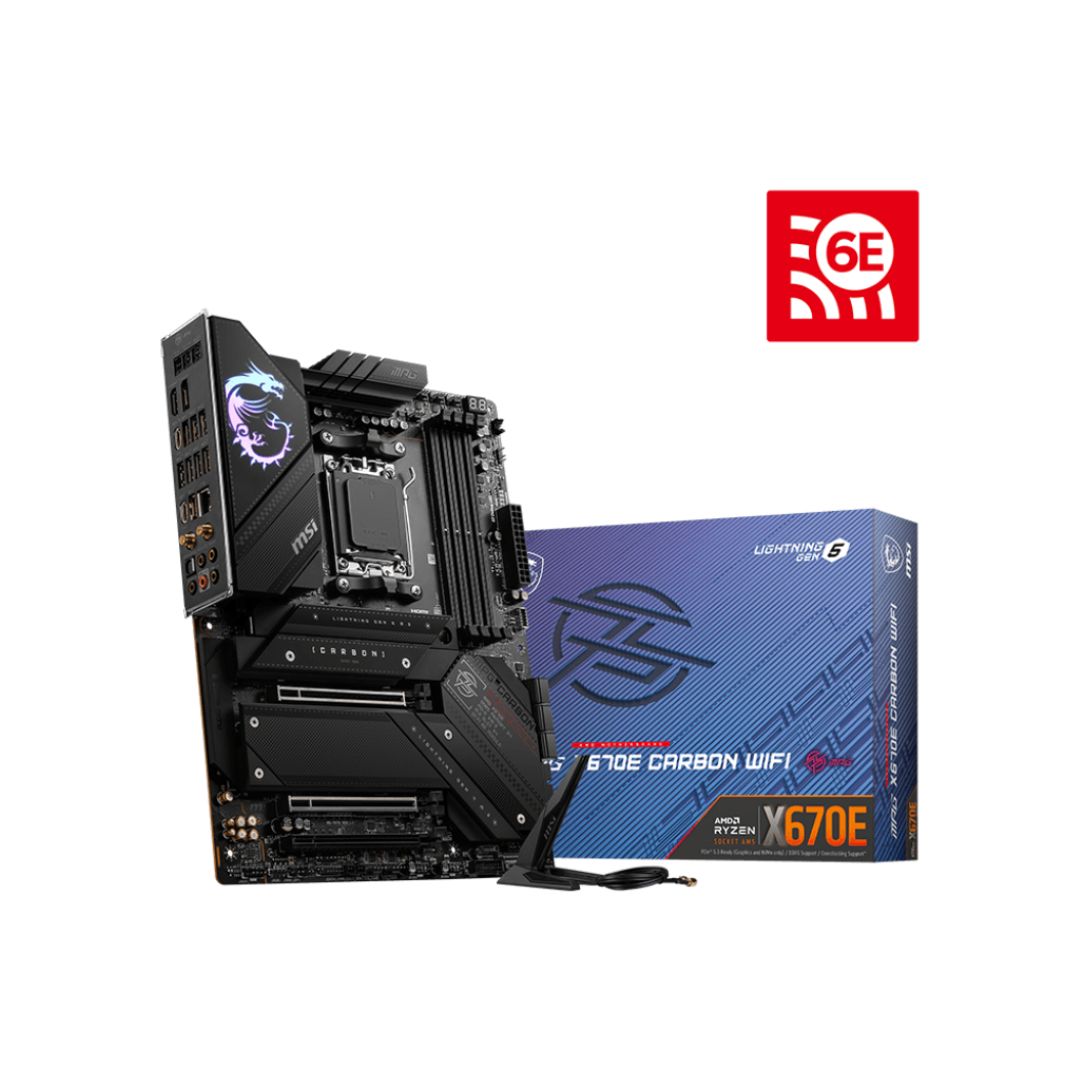

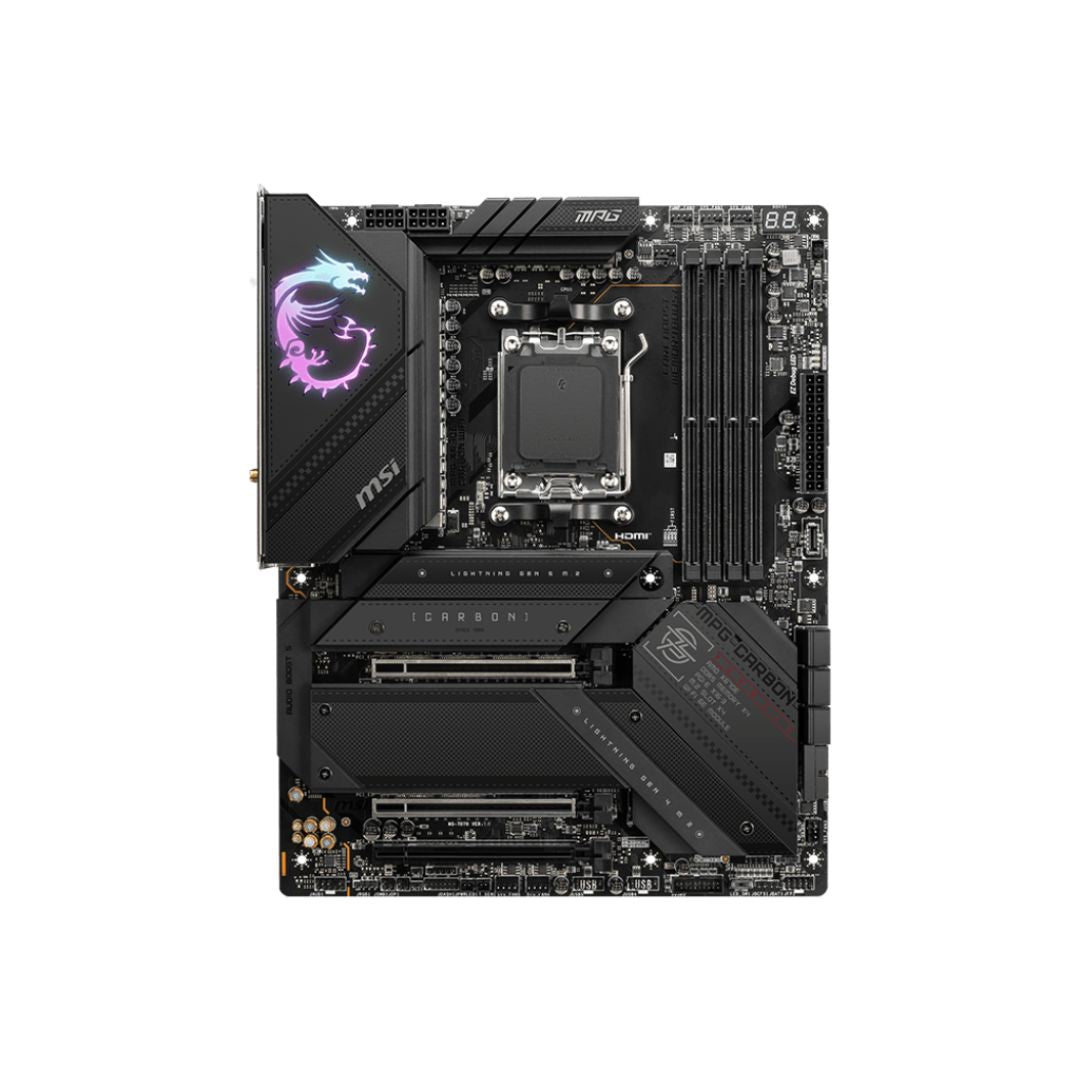

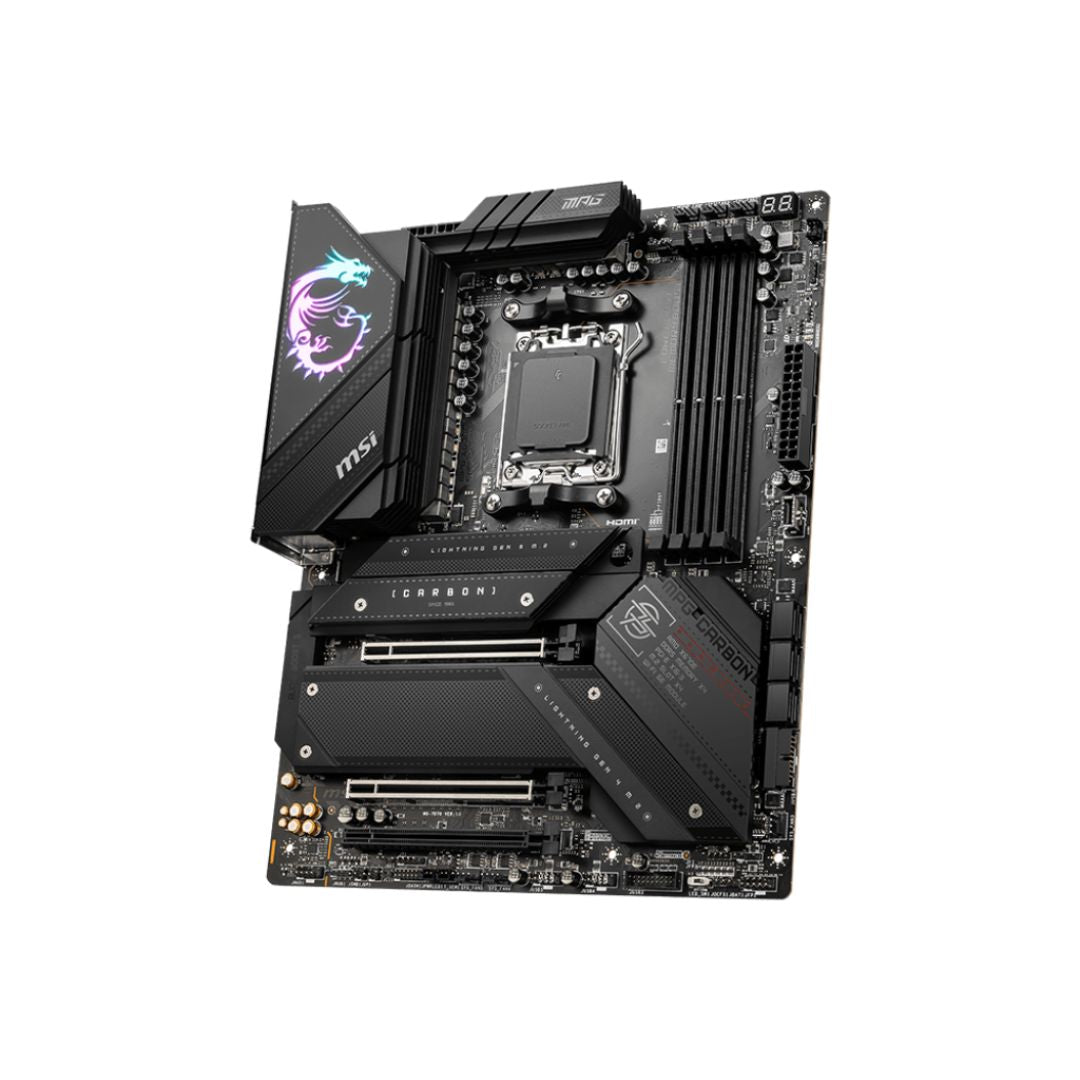

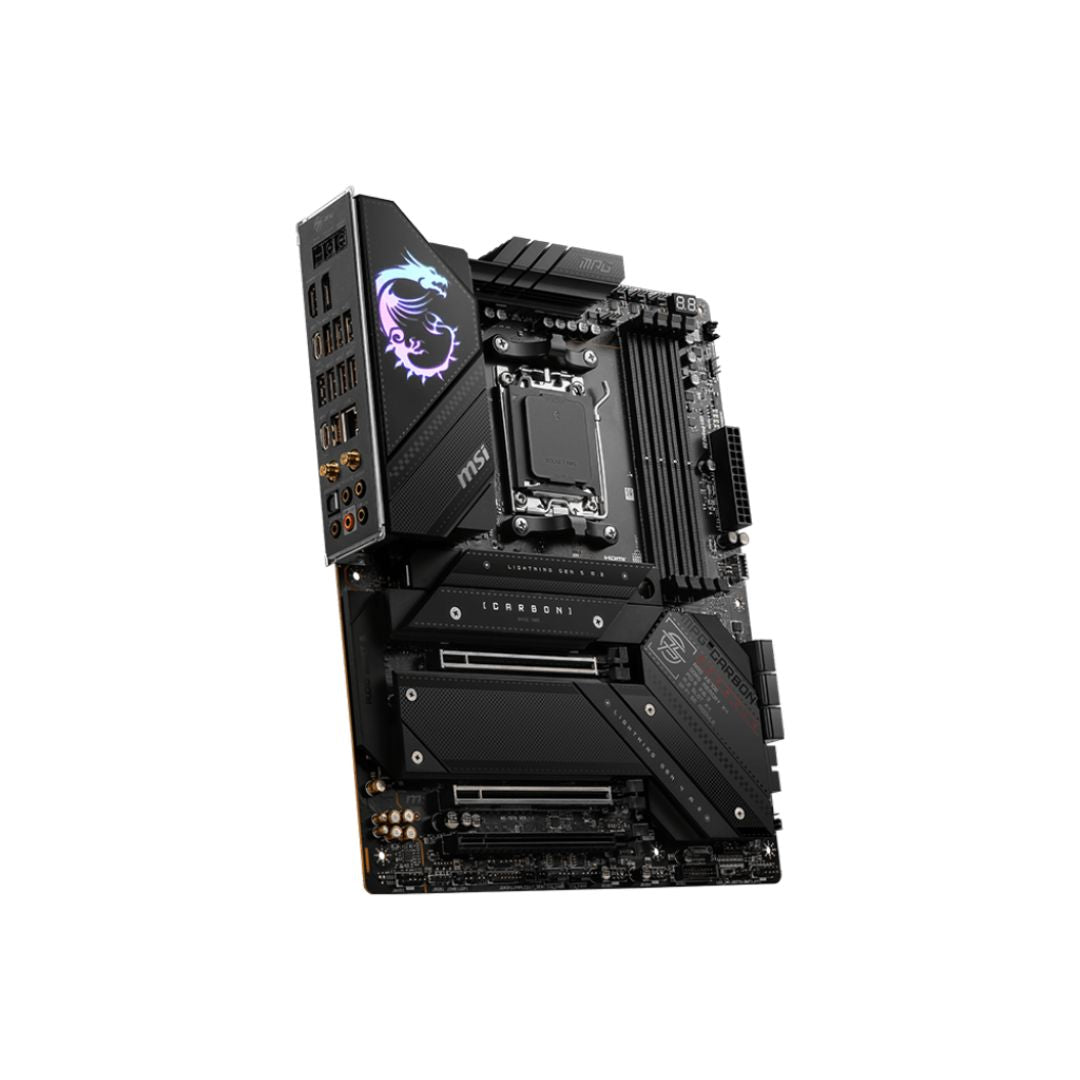

TJM MSI MPG X670E CARBON WIFI Motherboard

Motherboard Specification:

• Processor Support: Supports AMD Ryzen™ 8000/7000 Series Desktop Processors, Socket AM5
• Chipset: AMD X670
• Memory Support:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
• Graphics Ports:
  • 1x HDMI™ (HDMI™ 2.1 FRL)
  • 1x DisplayPort (DP 1.4)
  • 1x Type-C DisplayPort (DisplayPort 1.4 with HBR3)
• Expansion Slots:
  • 3x PCI-E x16 slot
  • 1x PCI-E x1 slot
• Storage:
  • 4x M.2
  • 6x SATA 6G
• Multi-GPU: AMD MULTI-GPU Support
• RAID: Supports RAID 0, RAID 1, and RAID 10 for both SATA and M.2 NVMe storage devices
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Front)
  • 6x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
• Ethernet: Realtek® RTL8125BG 2.5Gbps LAN
• Wireless & Bluetooth: AMD Wi-Fi 6E, Bluetooth® 5.3
• Audio: Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel
• Internal I/O Connectors: Various power connectors, fan connectors, front panel connectors, thermal sensor connectors, RGB LED connectors, TPM pin header, USB headers, and Smart Button.

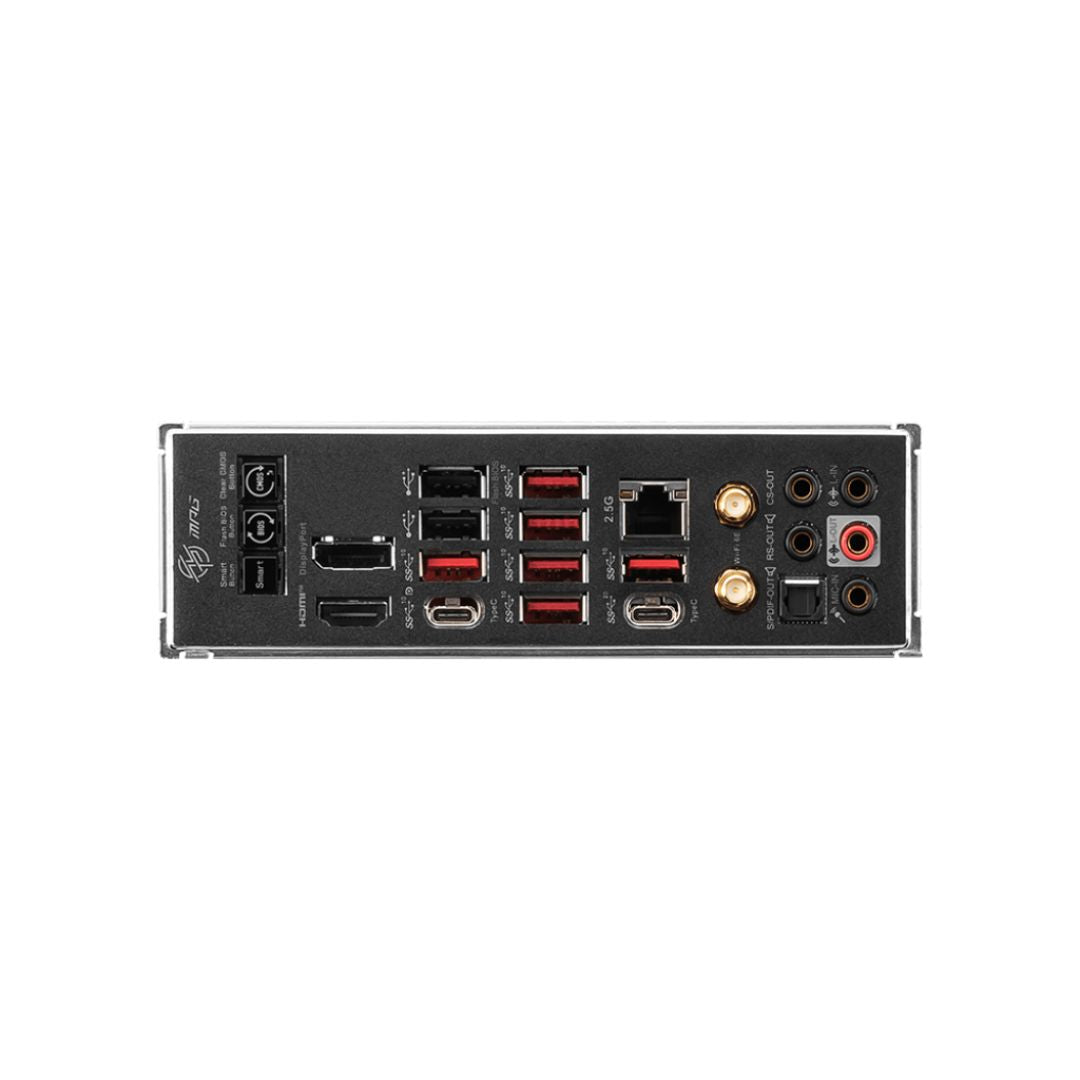

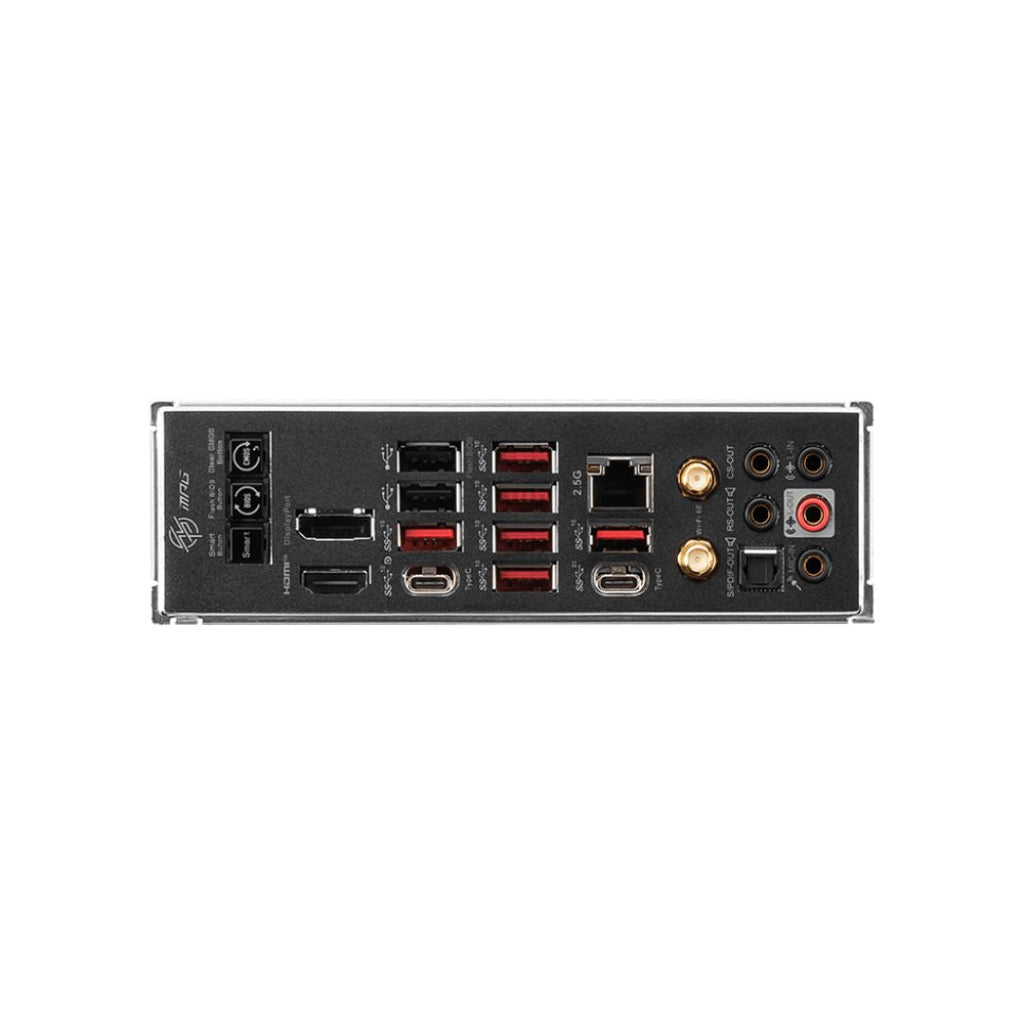

• Back Panel I/O Ports: Clear CMOS Button, Flash BIOS Button, DisplayPort, HDMI™, USB ports (2.0, 3.2 Gen1, 3.2 Gen2 Type A, 3.2 Gen2 Type C), 2.5G LAN port, audio connectors, Wireless/Bluetooth module, and S/PDIF-Out.
• Form Factor: ATX, 304.8mmx243.84mm
