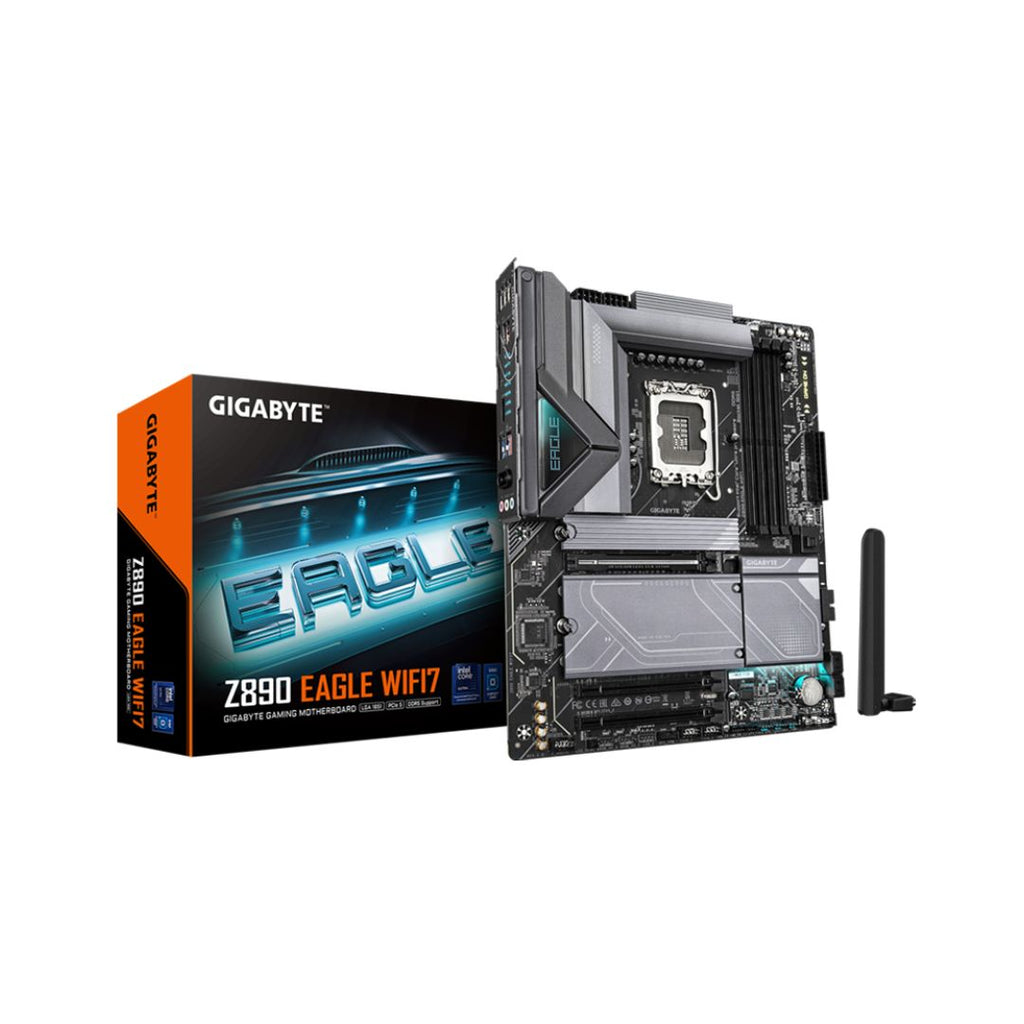

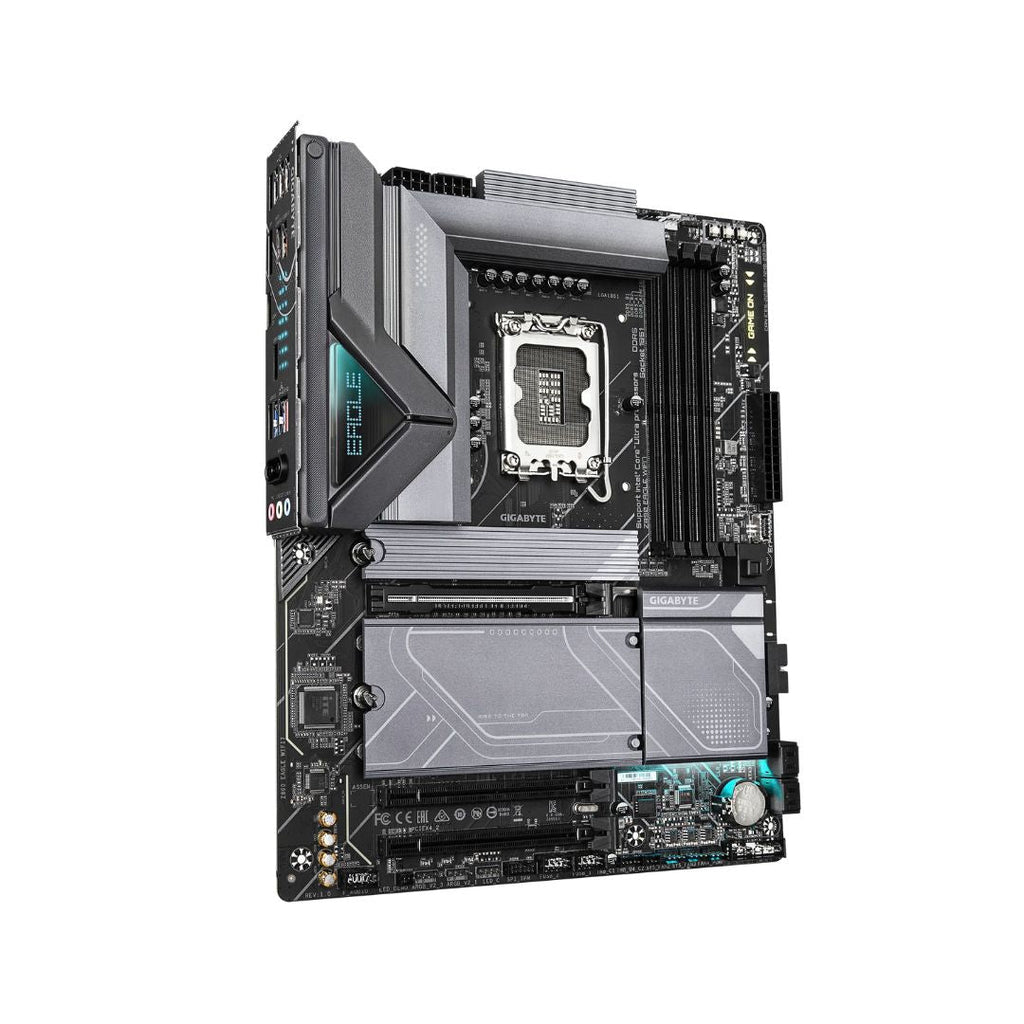

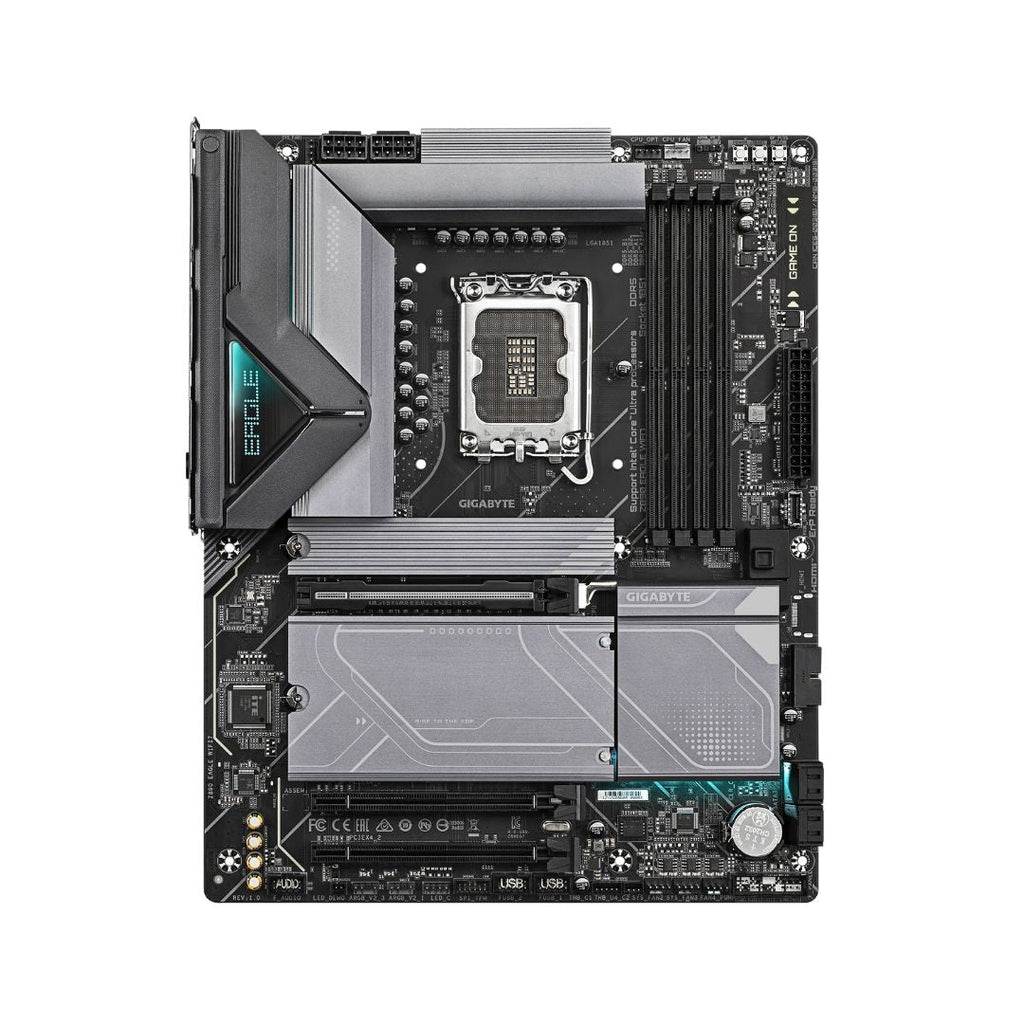

TJM Gigabyte Z890 EAGLE WIFI7

Motherboard Specification

CPU Socket: LGA1851, Intel® Core™ Ultra Processors (L3 cache varies with CPU)
Chipset: Intel® Z890 Express Chipset

Memory: DDR5 8800(O.C) to 5600MT/s, 4 x DDR5 DIMM (up to 256 GB), Dual channel, ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP Support

Graphics: Intel® HD Graphics, 1 x USB4® Type-C® (USB4 & DP 2.1, 3840x2160@144 Hz), 1 x DisplayPort 2.1 (3840x2160@144 Hz)

Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

Networking: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots:

• CPU: 1 x PCIe 5.0 x16 (supports graphics card or NVMe SSD)
• Chipset: 2 x PCIe 4.0 x4

Storage Interface:

• CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2
• Chipset: 1 x M.2 PCIe 4.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2 (SATA support), 4 x SATA 6Gb/s
• RAID Support: RAID 0, 1, 5, 10 for NVMe & SATA

USB Ports:

• CPU: 1 x USB4® Type-C® (back)
• Chipset: 1 x USB 3.2 Gen 2 Type-C® (internal), 2 x USB 3.2 Gen 2 Type-A (back), 5 x USB 3.2 Gen 1 (3 back, 2 internal), 8 x USB 2.0/1.1 (4 back, 4 internal)

Internal I/O Connectors: 24-pin ATX, 2 x 8-pin ATX 12V, CPU fan header, CPU fan/water cooling pump header, 3 x system fan headers, system fan/water cooling pump header, 3 x addressable RGB Gen2 LED headers, RGB LED header, 4 x M.2 connectors, 4 x SATA 6Gb/s connectors, front panel header, front panel audio header, USB Type-C® (Gen 2) header, USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, TPM header, power button, Q-Flash Plus button, reset button, reset jumper, Clear CMOS jumper

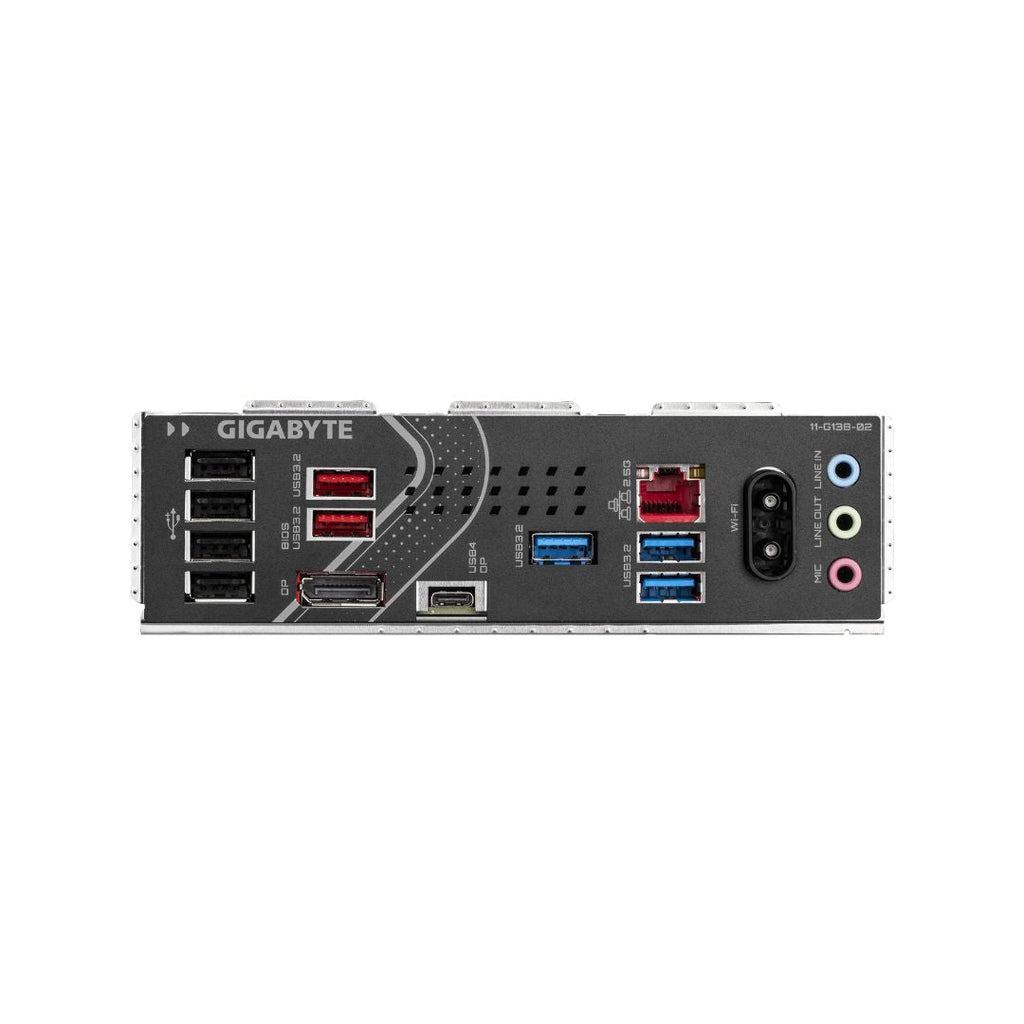

Back Panel I/O Ports: 1 x USB4® Type-C® (DP), 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x DisplayPort, 2 x antenna connectors, 1 x RJ-45, 3 x audio jacks

BIOS: 256 Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup

Unique Features: GIGABYTE Control Center (GCC), Norton® Internet Security (OEM)

Operating System Support: Windows 11 64-bit

Form Factor: ATX (30.5 cm x 24.4 cm)
