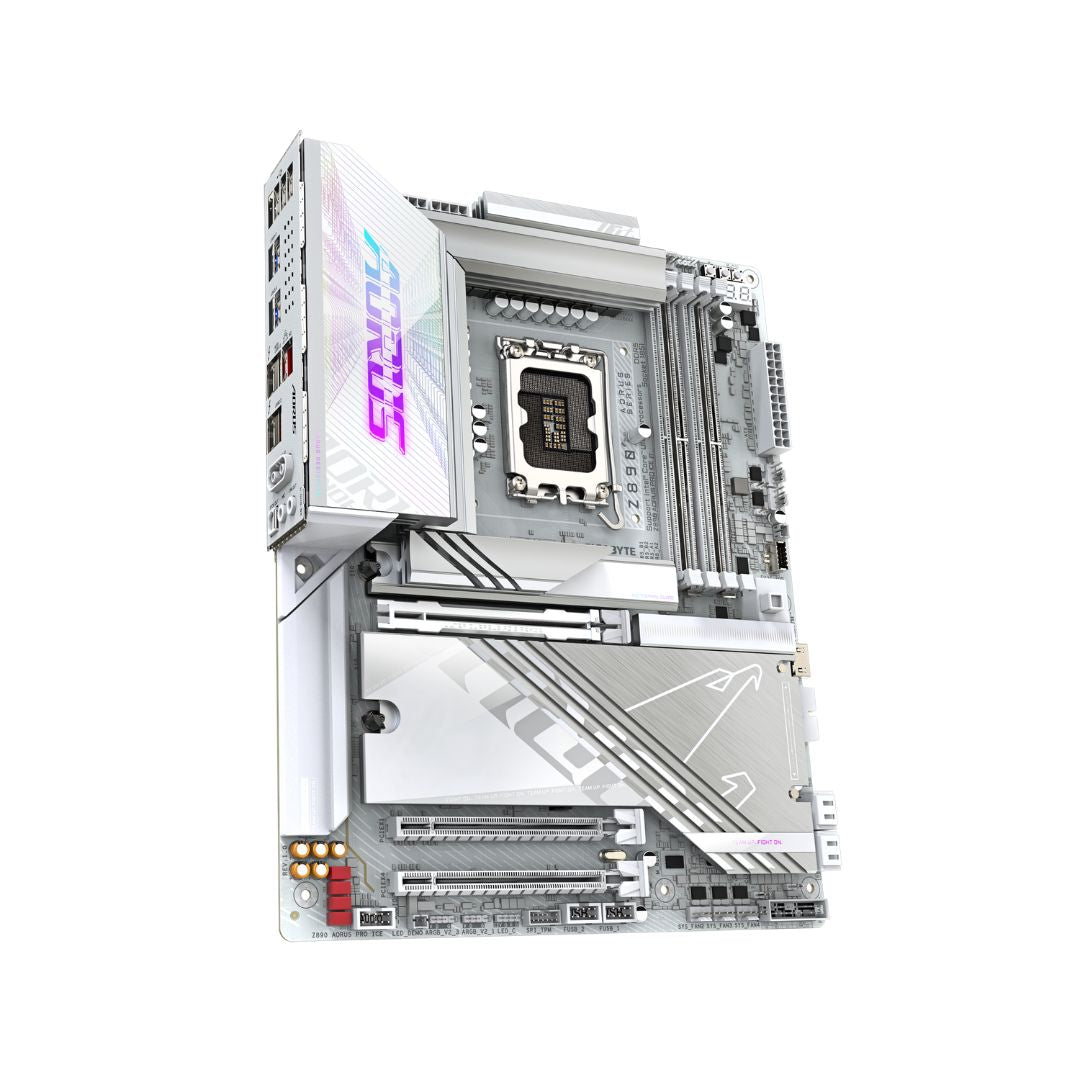

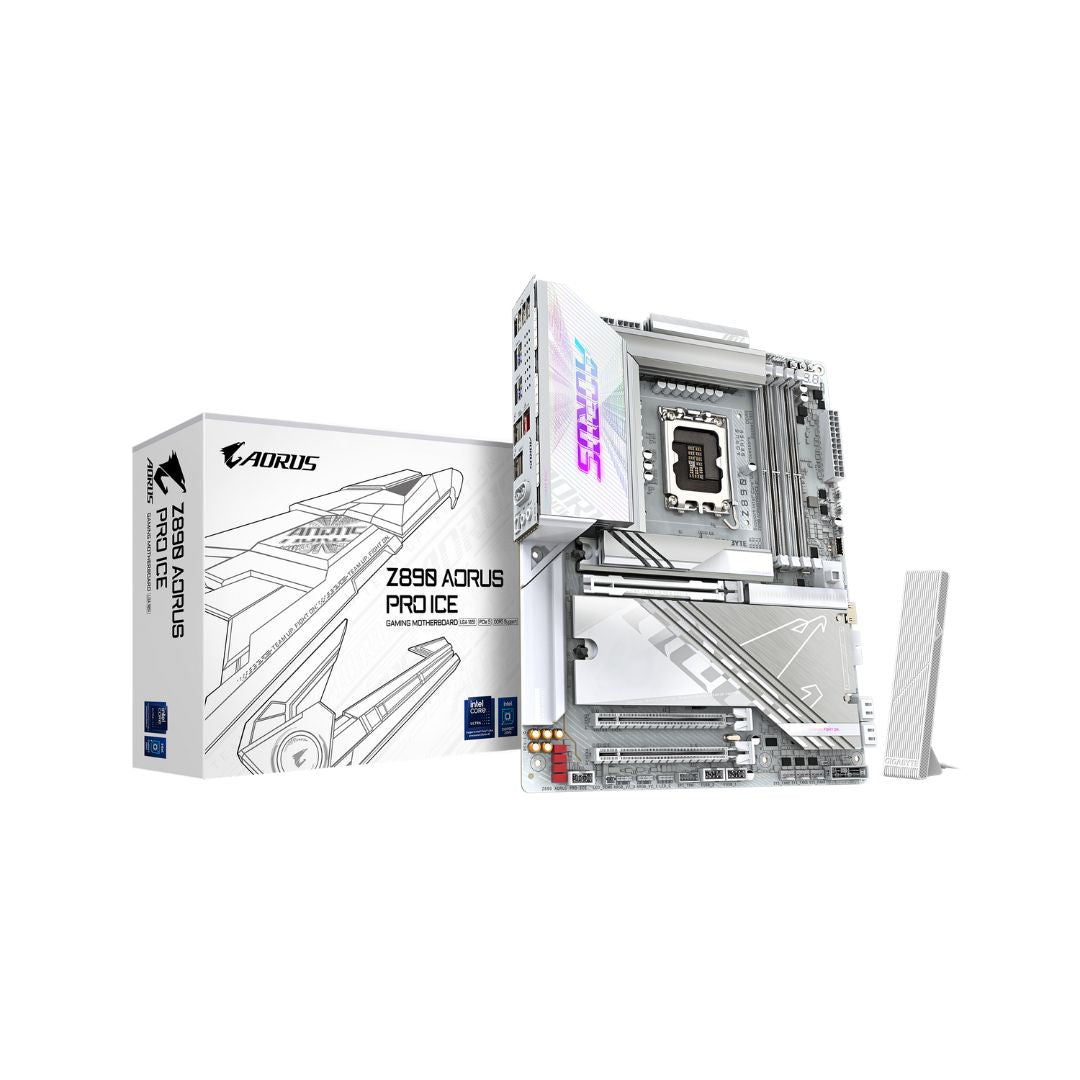

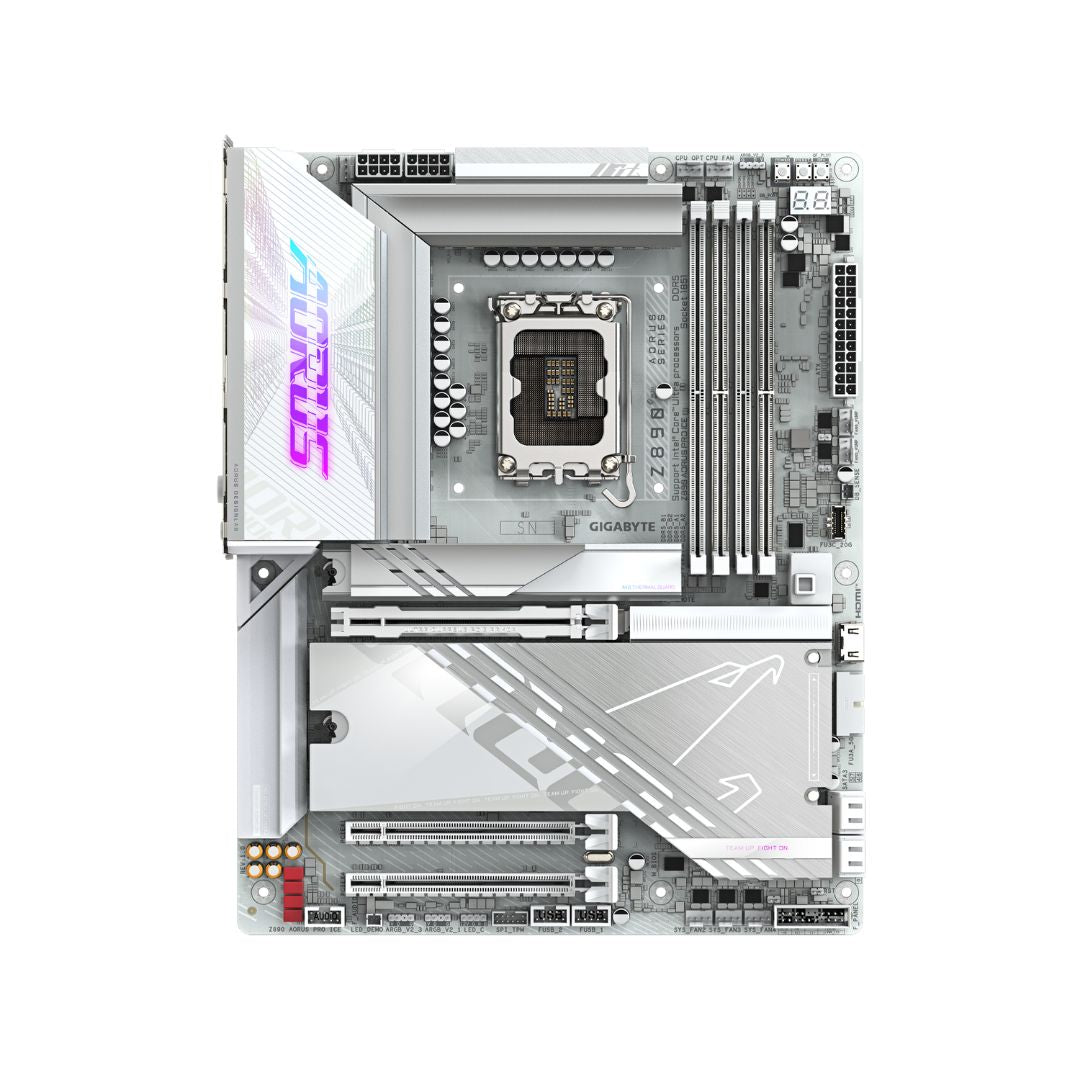

TJM Gigabyte Z890 AORUS PRO ICE

Motherboard Specification

CPU Socket: LGA1851, Intel® Core™ Ultra Processors (L3 cache varies with CPU)
Chipset: Intel® Z890 Express Chipset

Memory:

• Supports DDR5 9500(O.C) to 5600MT/s
• 4 x DDR5 DIMM sockets (up to 256 GB)
• Dual channel architecture
• Supports ECC and non-ECC Un-buffered DIMM
• XMP and CUDIMM support

Graphics:

• Integrated Intel® HD Graphics
• 2 x Thunderbolt™ 4 (USB4® Type-C®) supporting DisplayPort
• 1 x HDMI port (1920x1080@30 Hz, HDMI 1.4)
• Support for up to triple display simultaneously

Audio:

• Realtek® ALC1220 CODEC, High Definition Audio
• 2/4/5.1/7.1-channel configuration
• Supports S/PDIF Out

Networking:

• Realtek® 5GbE LAN (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Intel® Wi-Fi 7 BE200 (802.11a/b/g/n/ac/ax/be)
• Bluetooth 5.4

Expansion Slots:

• CPU: 1 x PCIe 5.0 x16 (for GPU or NVMe SSD)
• Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1

Storage Interface:

• CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2
• Chipset: 3 x M.2 PCIe 4.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2 (SATA support), 4 x SATA 6Gb/s
• RAID: 0, 1, 5, 10 for NVMe and SATA

USB Ports:

• CPU: 2 x Thunderbolt™ 4 (USB Type-C®)
• Chipset: 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1

Internal I/O Connectors:

• 24-pin ATX, 2 x 8-pin ATX 12V
• 1 x CPU fan header, 1 x water cooling pump header
• 4 x system fan headers, 2 x system fan/water pump headers
• 3 x addressable RGB Gen2 LED headers, 1 x RGB LED header
• 5 x M.2 connectors, 4 x SATA 6Gb/s connectors
• 1 x HDMI port, 1 x USB Type-C® header
• 1 x Trusted Platform Module header
• 2 x temperature sensor headers

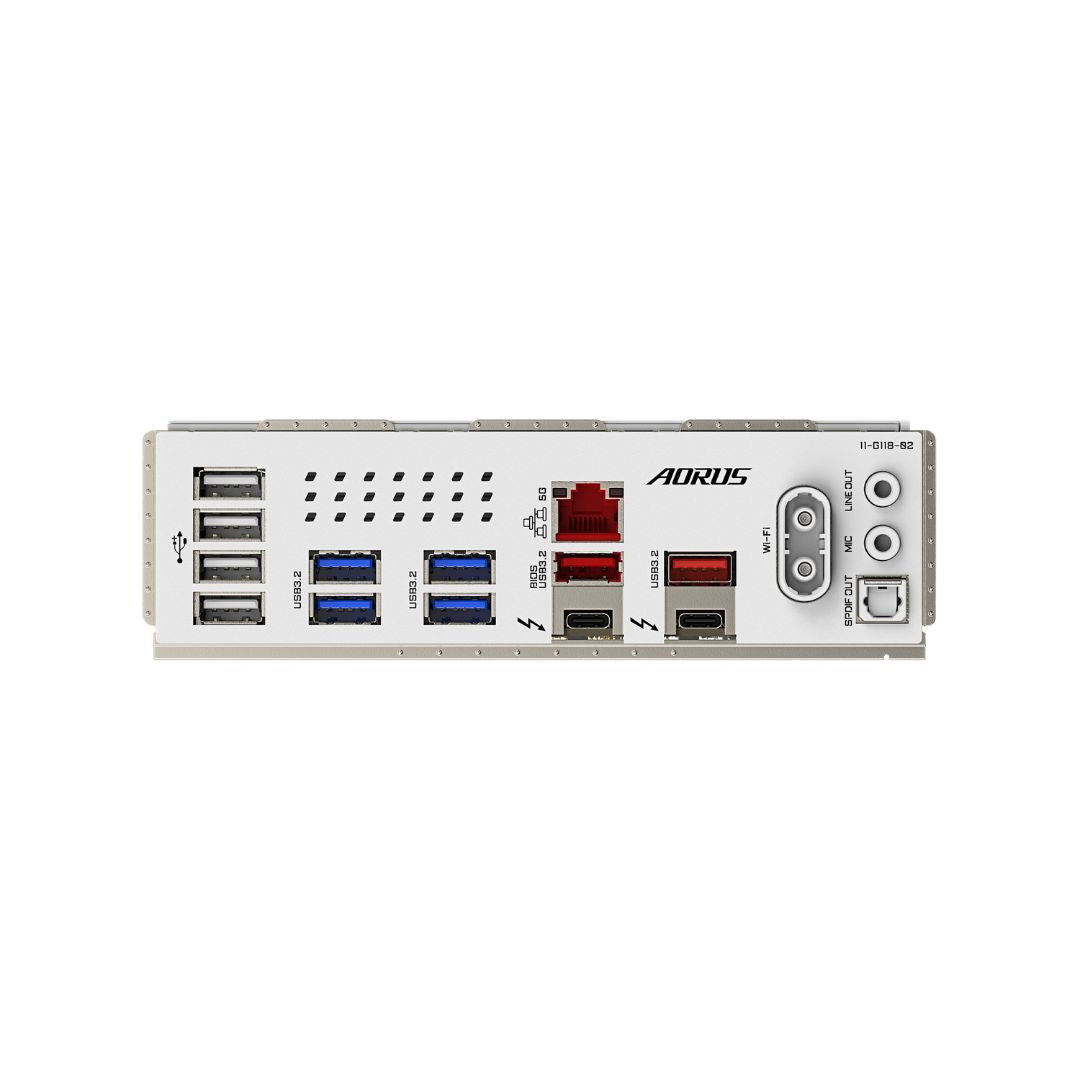

Back Panel I/O Ports:

• 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 2 x Thunderbolt™ 4 (USB Type-C®), 2 x USB 3.2 Gen 2 Type-A
• 1 x RJ-45, 2 x antenna connectors
• 1 x optical S/PDIF Out, 2 x audio jacks

BIOS:

• 256 Mbit flash, AMI UEFI BIOS
• Supports Q-Flash and Q-Flash Plus

Unique Features:

• GIGABYTE Control Center (GCC)
• Norton® Internet Security (OEM)
• LAN bandwidth management software
• Voltage, temperature, fan speed, and noise detection

Operating System Support: Windows 11 64-bit
Form Factor: ATX (30.5 cm x 24.4 cm)
