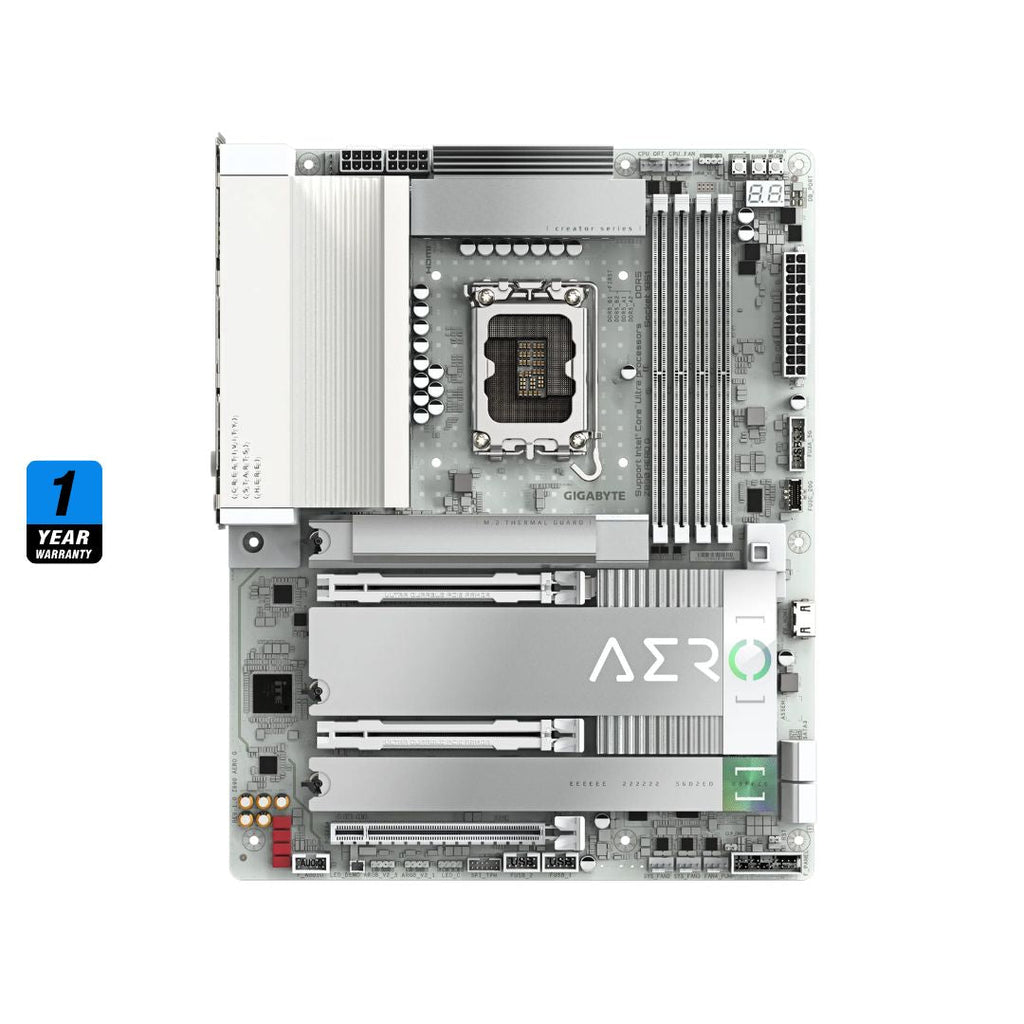

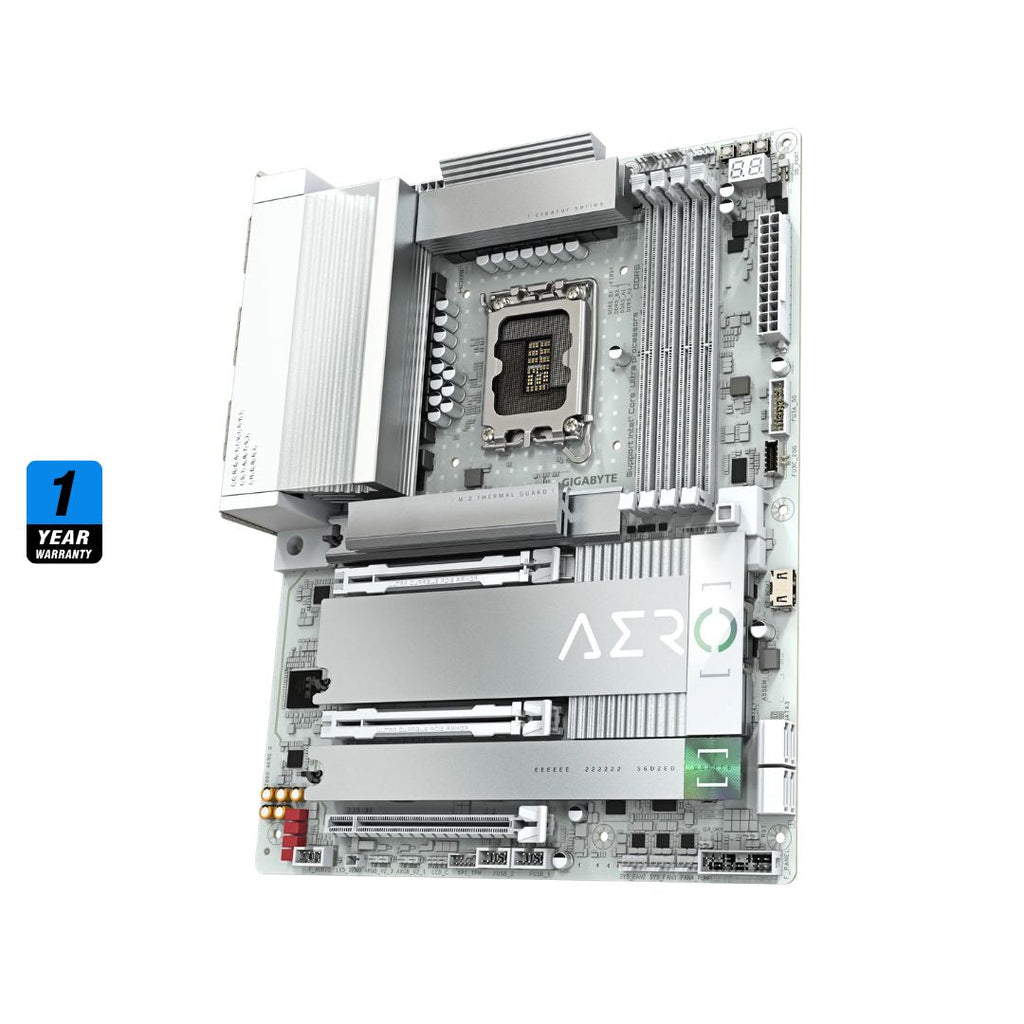

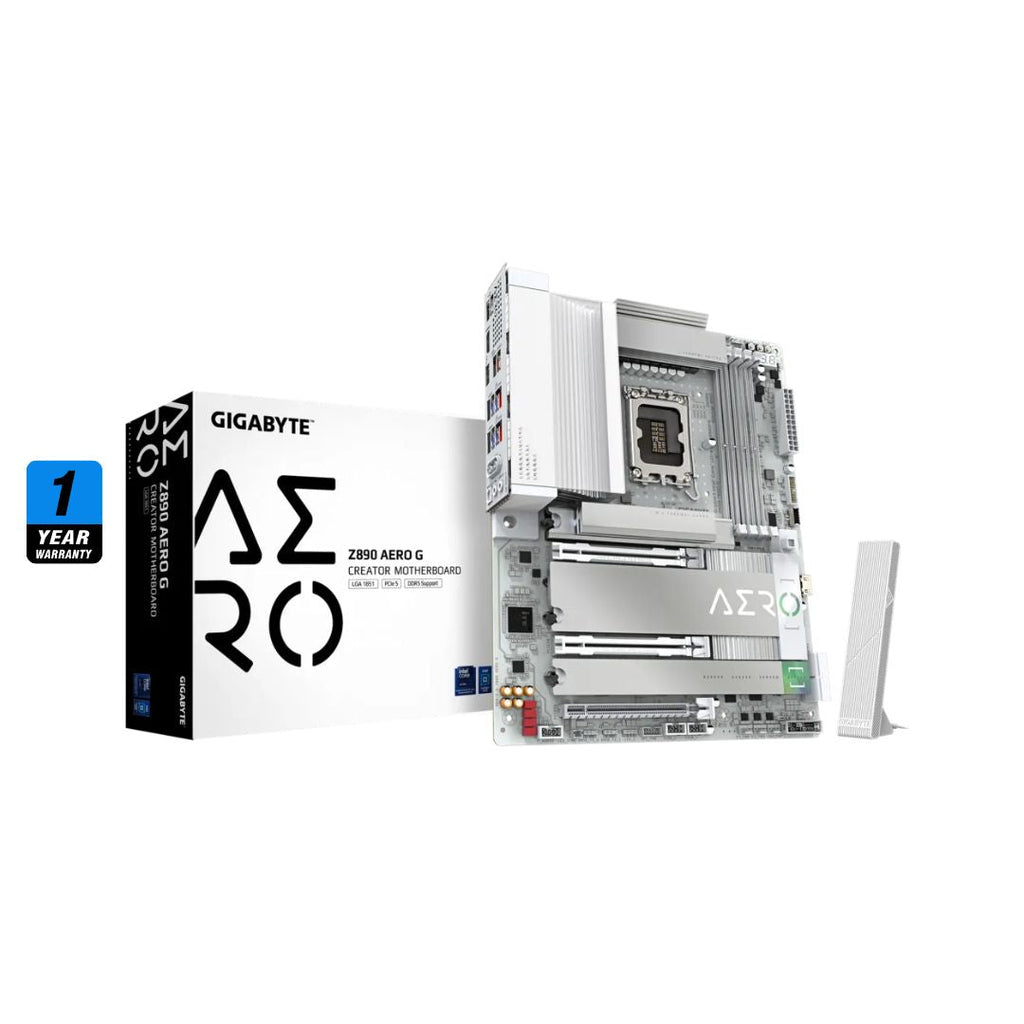

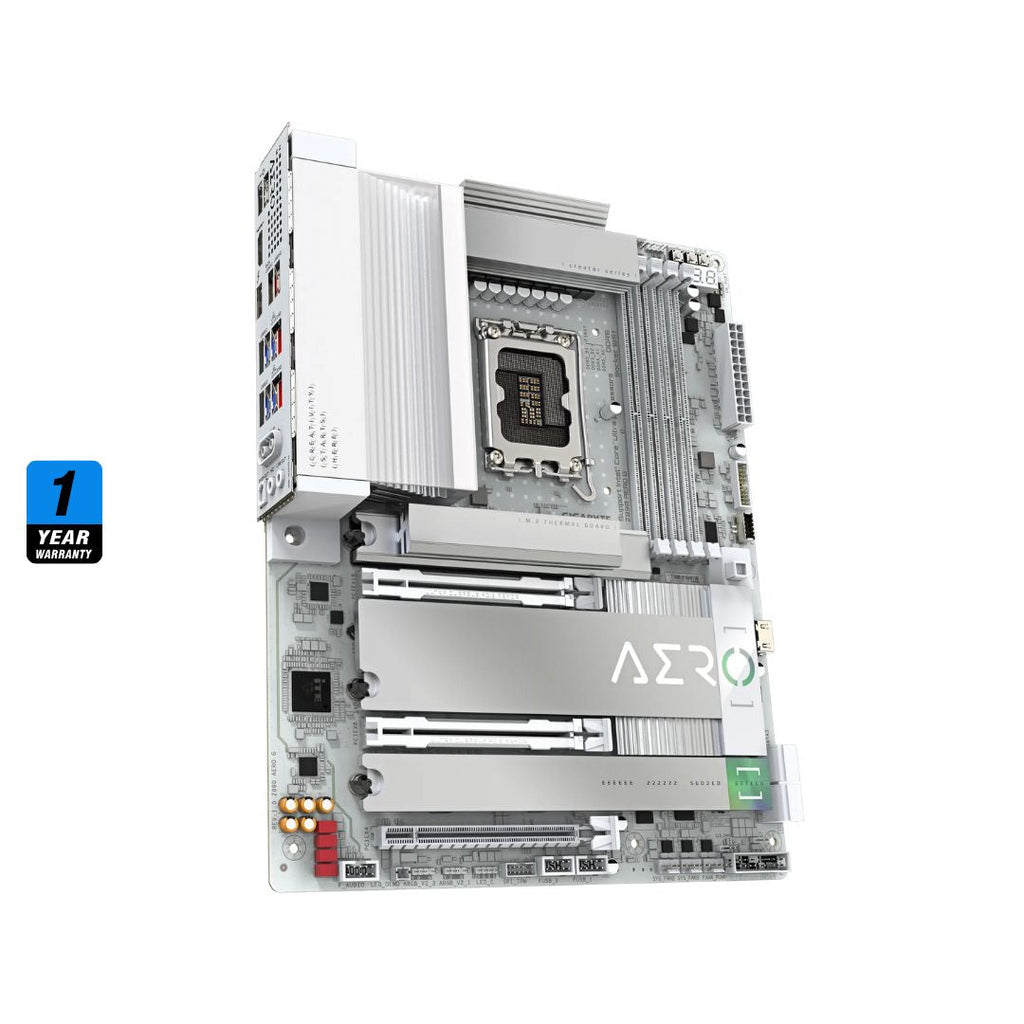

TJM Gigabyte Z890 AERO G, Motherboard

Motherboard Specification

• Processor Support : LGA1851 socket, supports Intel® Core™ Ultra Processors

• Chipset : Intel® Z890 Express

• Memory Support :
4 x DDR5 DIMM slots, up to 256GB
Supports up to 9200MT/s (OC)
Supports ECC (non-ECC mode), XMP, and CUDIMM modules
Dual channel memory architecture

• Graphics Ports :
1 x Thunderbolt™ 4 (USB4® Type-C®) – up to 5120x2880@60Hz
1 x HDMI 2.1 – up to 4096x2160@60Hz
1 x Front HDMI 1.4 – up to 1920x1080@30Hz
Supports up to triple-display

• Expansion Slots :
1 x PCIe 5.0 x16
1 x PCIe 5.0 x8 (shares bandwidth with x16)
1 x PCIe 4.0 x4

• Storage :
2 x M.2 (CPU) – 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4
3 x M.2 (Chipset) – PCIe 4.0 x4/x2 & SATA
4 x SATA 6Gb/s
RAID 0/1/5/10 for NVMe and SATA

• Ethernet : 2 x Intel® 2.5GbE LAN

• Wireless & Bluetooth : Intel® Wi-Fi 7 BE202 + Bluetooth® 5.4

• USB :
Back:

• 1 x Thunderbolt™ 4 (USB4® Type-C®)

• 2 x USB 3.2 Gen2 Type-A (red)

• 4 x USB 3.2 Gen1

• 2 x USB 2.0

Internal:

• 1 x USB-C (Gen 2x2)

• 1 x USB 3.2 Gen1 header

• 2 x USB 2.0 headers (4 ports)

• Audio : Realtek® ALC1220, 7.1-channel HD Audio, DSD, S/PDIF Out

• Internal I/O Connectors :
2 x 8-pin + 1 x 24-pin power
5 x M.2, 4 x SATA
USB-C Gen 2x2, USB 3.2 Gen1, USB 2.0
ARGB & RGB headers, TPM, HDMI, fan/pump headers, reset, Q-Flash, power buttons

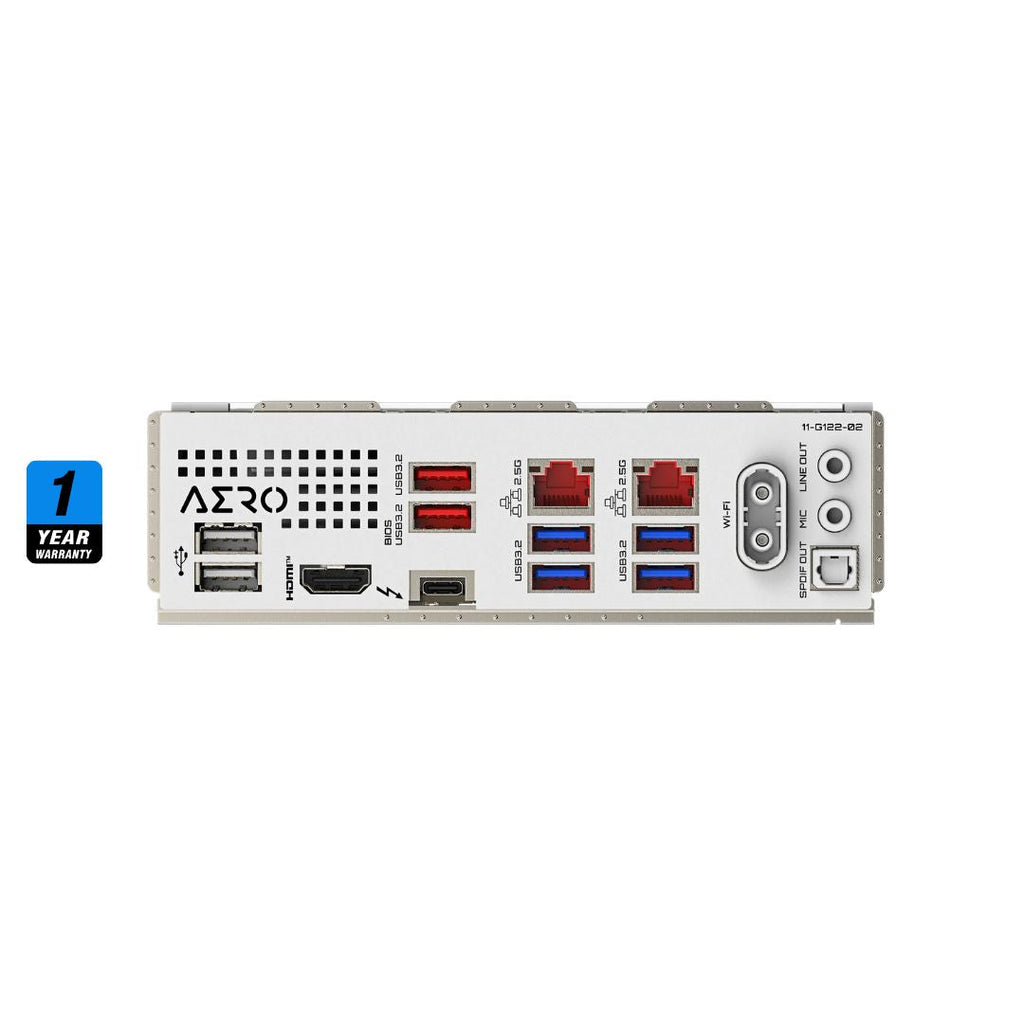

• Back Panel I/O Ports :
1 x HDMI
1 x Thunderbolt™ 4 (USB-C)
2 x USB 3.2 Gen2 Type-A (red)
4 x USB 3.2 Gen1
2 x USB 2.0
2 x RJ-45

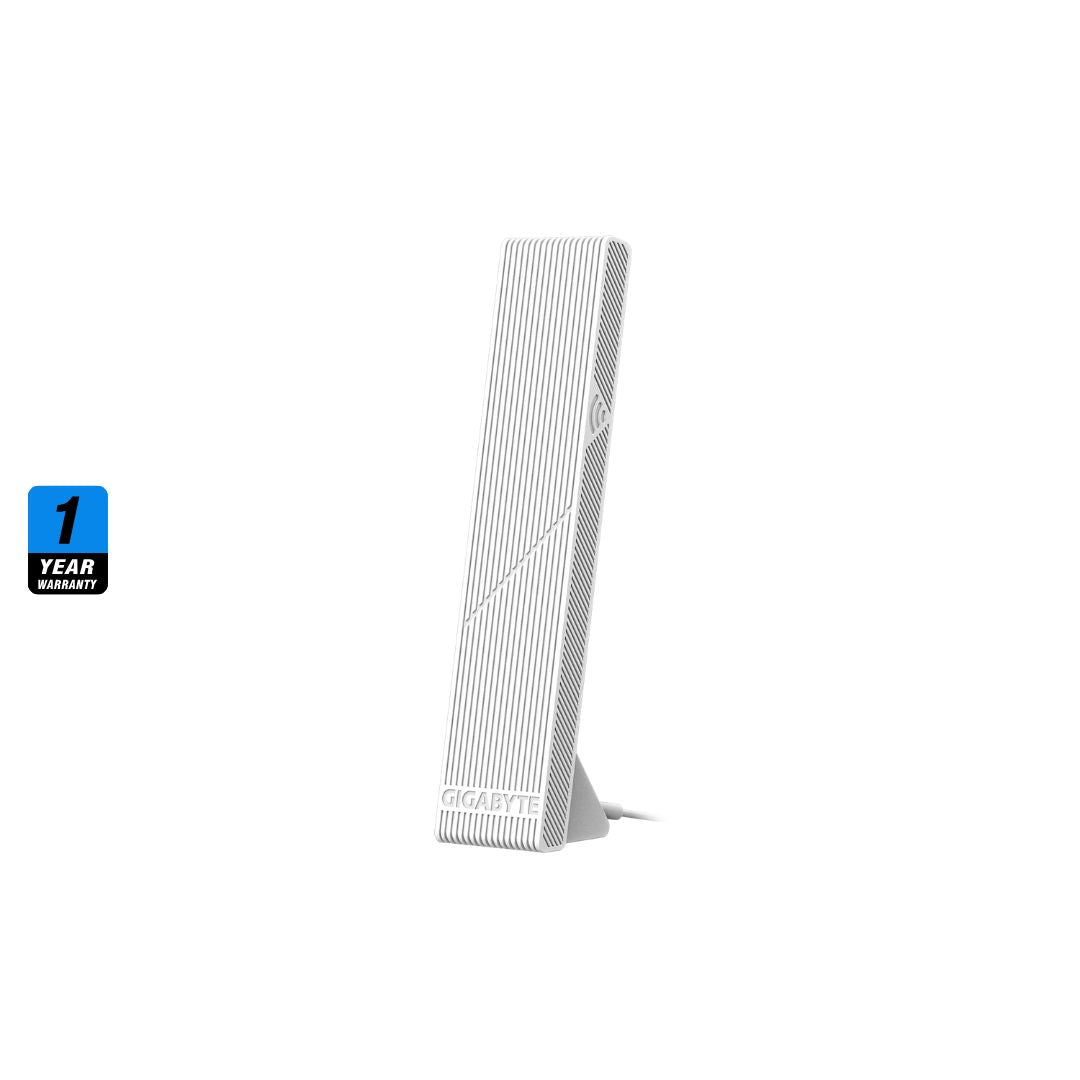

2 x SMA Wi-Fi Antennas
2 x Audio jacks + 1 x Optical S/PDIF

• Form Factor : ATX, 30.5 x 24.4 cm
