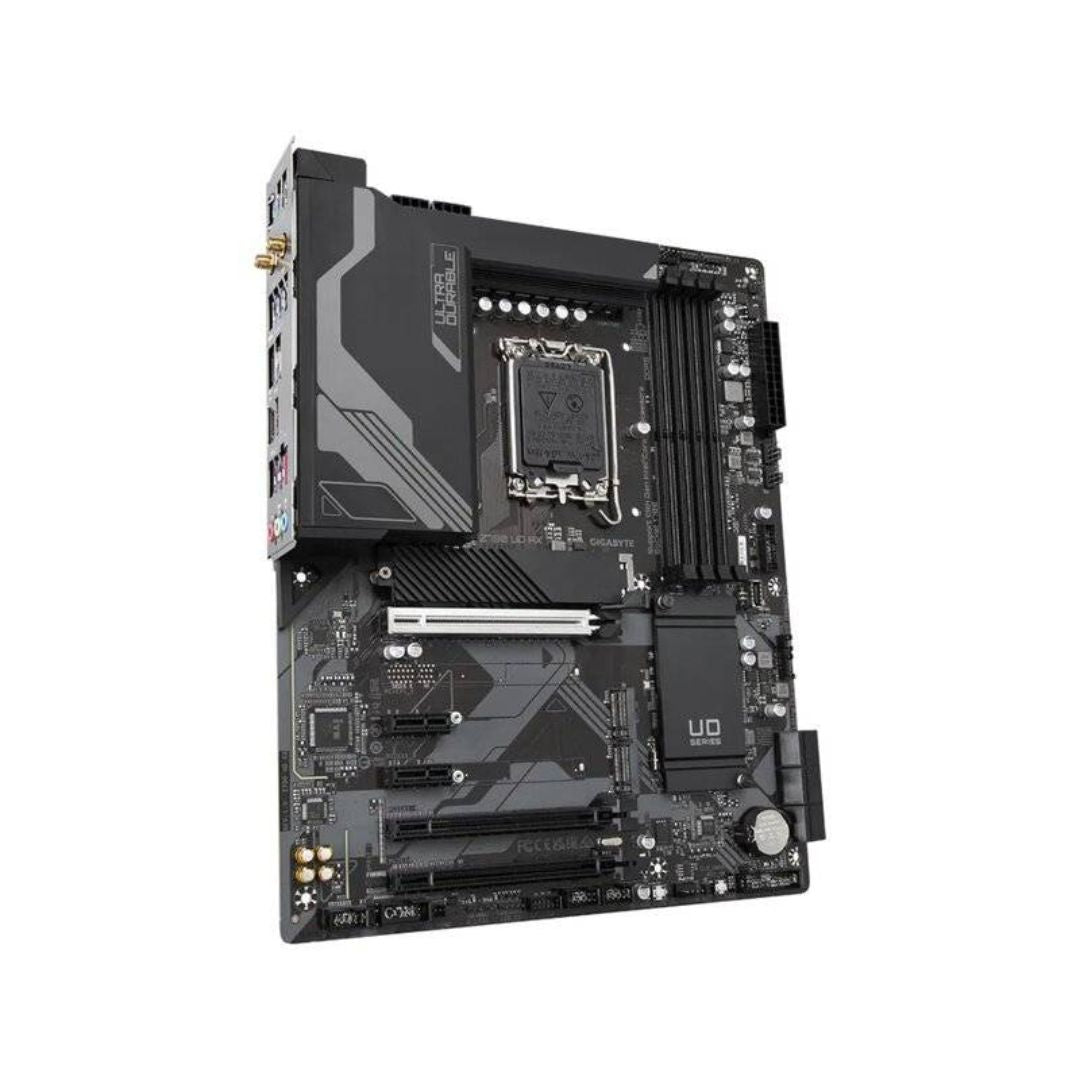

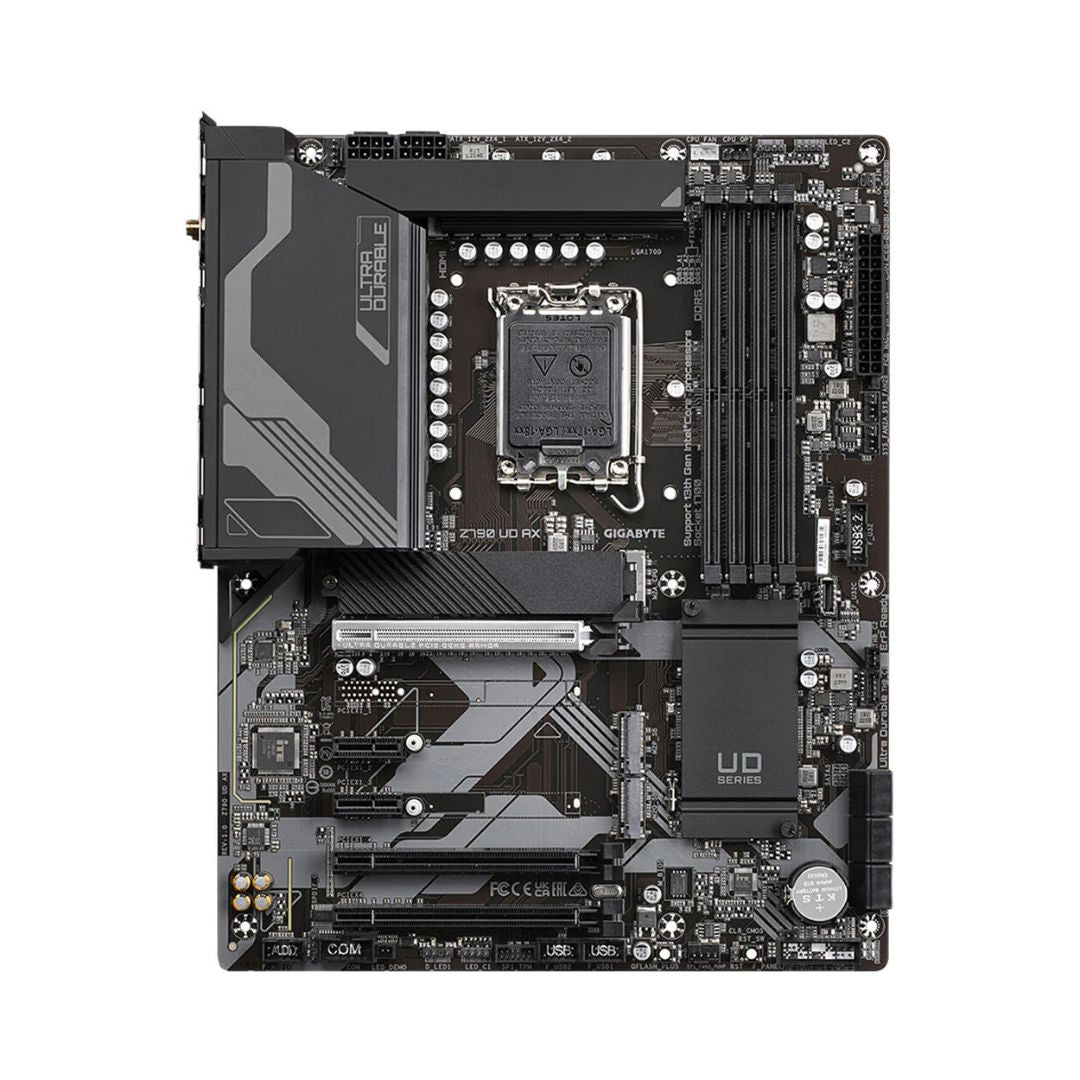

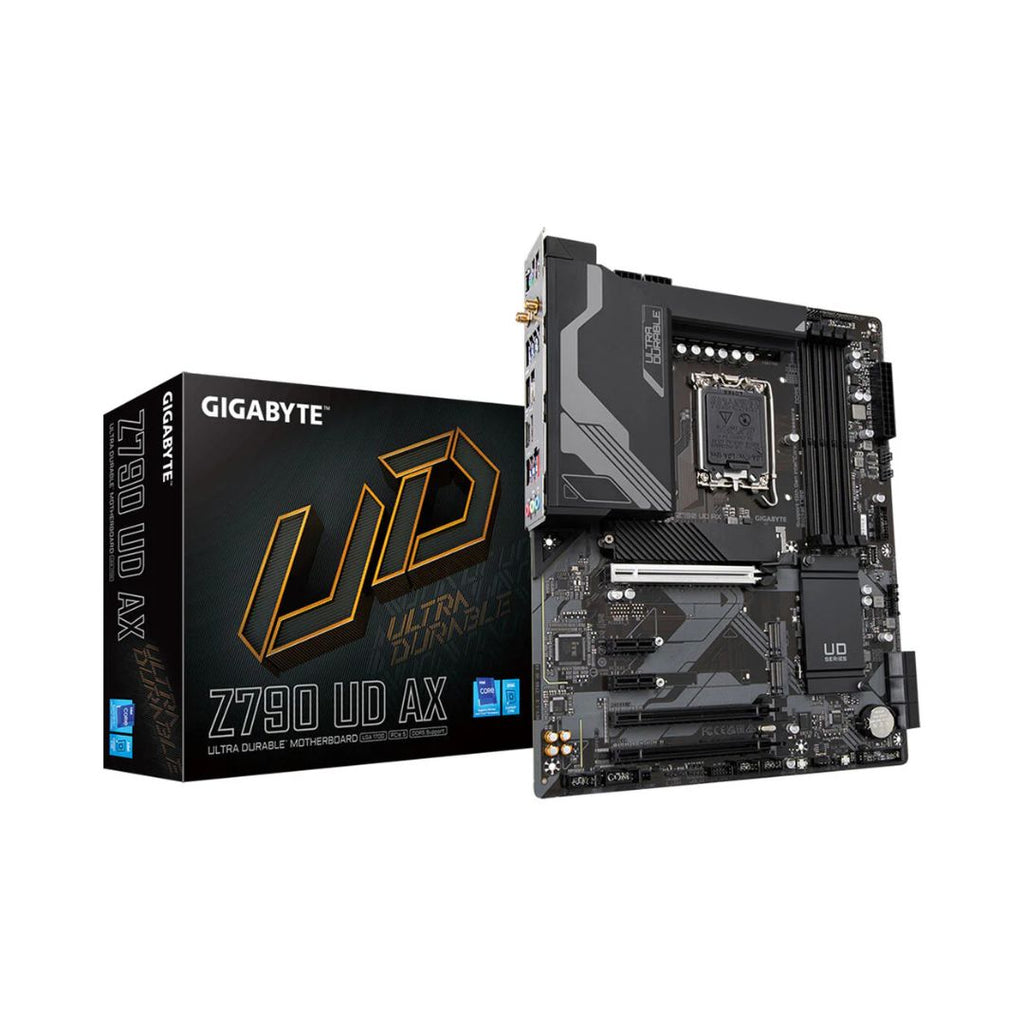

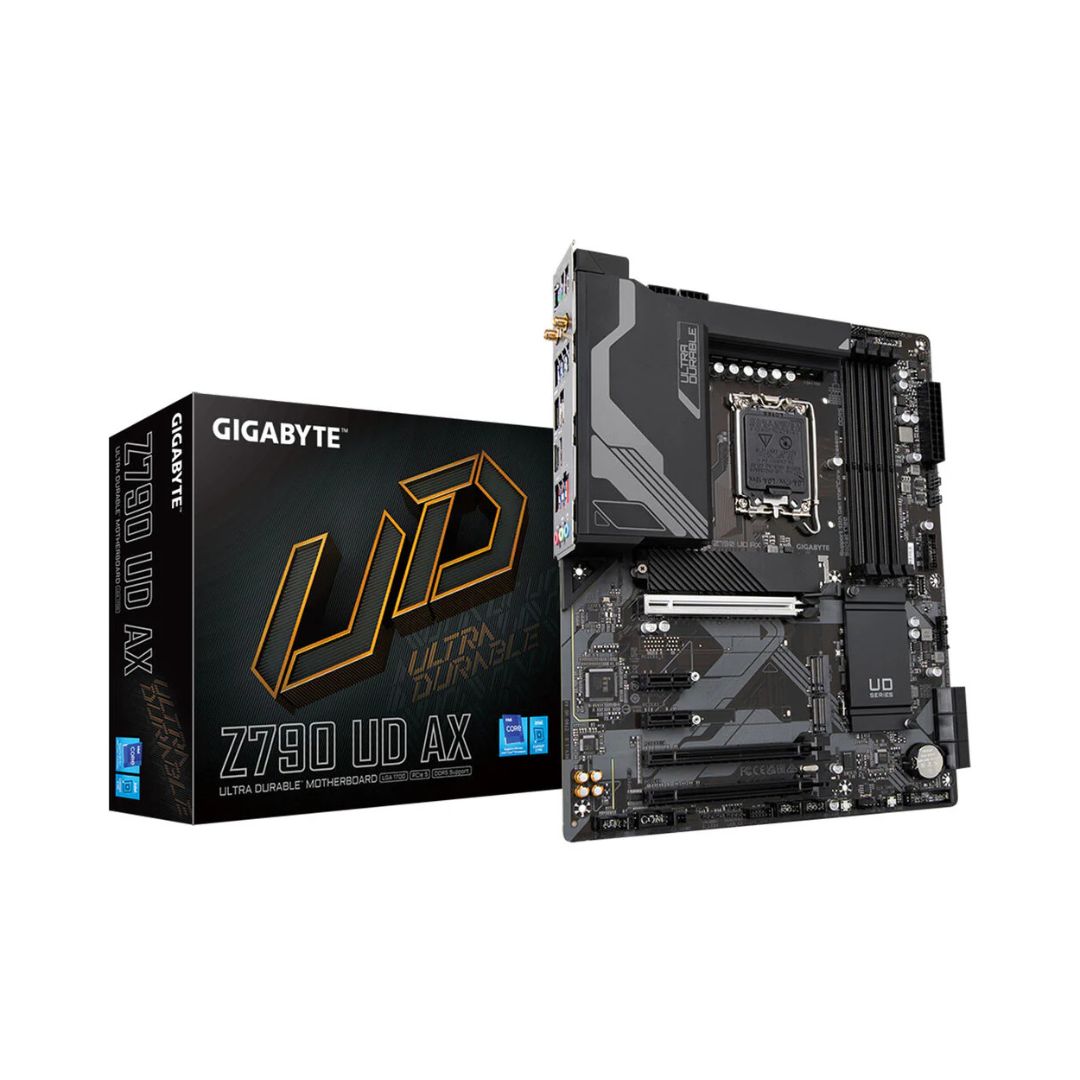

TJM Gigabyte Z790 UD AX WIFI7

Motherboard Specification
CPU Socket: LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
Chipset: Intel® Z790 Express Chipset

Memory: DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000, up to 256 GB (4 x DDR5 DIMM)
Graphics: Integrated Intel® HD Graphics with 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz)
Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
Networking: Realtek® 2.5GbE LAN, Intel® Wi-Fi 6E AX210/AX211, Bluetooth 5.3

Expansion Slots:

• CPU:
  • 1 x PCI Express x16 (PCIe 5.0, x16)
• Chipset:
  • 1 x PCI Express x16 (PCIe 4.0, x4)
  • 1 x PCI Express x16 (PCIe 3.0, x1)
  • 2 x PCI Express x1 (PCIe 3.0, x1)
• Support for AMD CrossFire™ technology

Storage Interface:

• CPU:
  • 1 x M.2 (PCIe 4.0 x4/x2, type 22110/2280)
• Chipset:
  • 2 x M.2 (PCIe 4.0 x4/x2, type 2280)
  • 6 x SATA 6Gb/s
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for both NVMe and SATA

USB Ports:

• Back Panel:
  • 1 x USB Type-C® (USB 3.2 Gen 2x2)
  • 1 x USB 3.2 Gen 2 Type-A (red)
  • 4 x USB 3.2 Gen 1
  • 4 x USB 2.0/1.1
• Internal I/O:
  • 1 x USB Type-C® (USB 3.2 Gen 1)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 3 x M.2 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C® header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

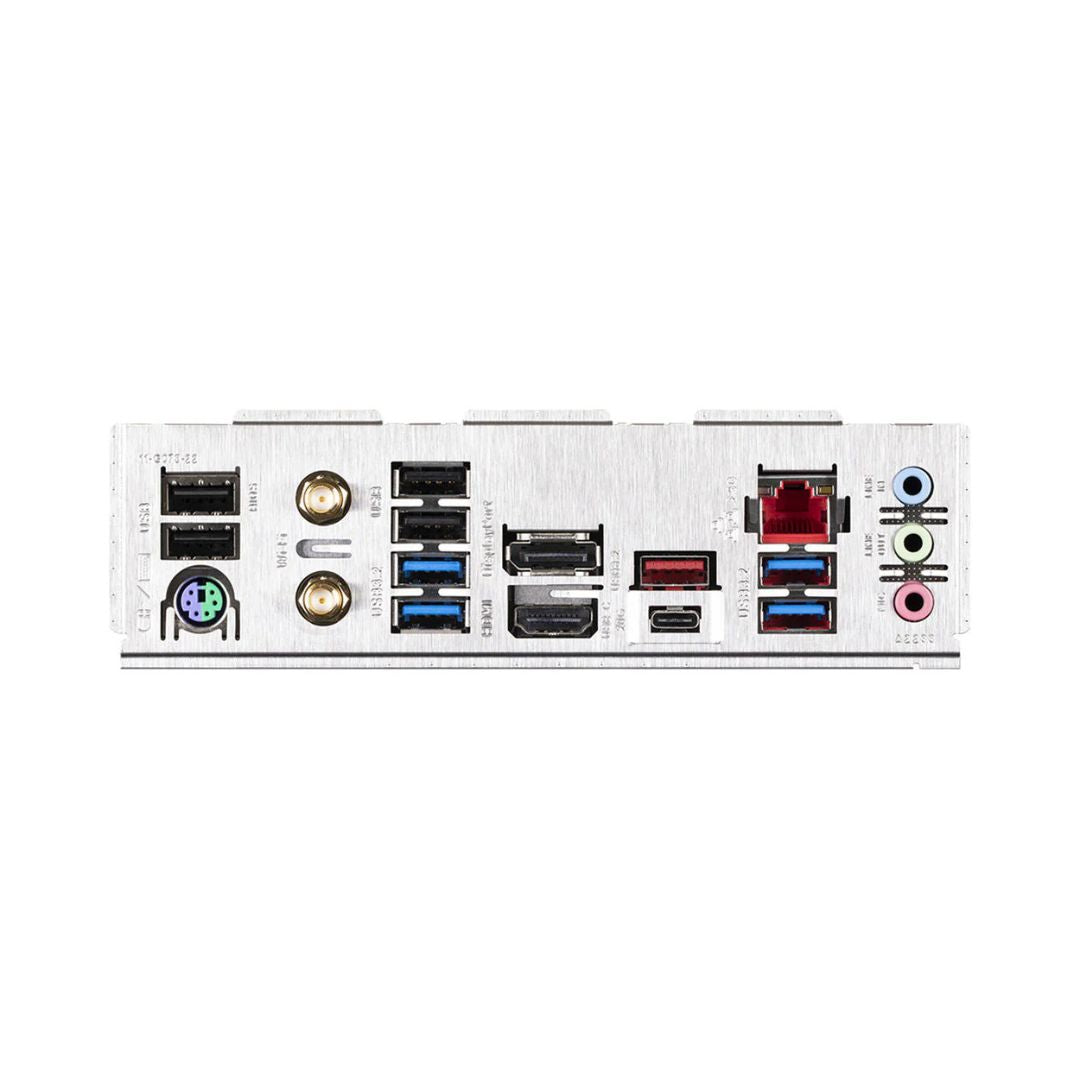

Back Panel I/O Ports:

• 1 x USB Type-C® (USB 3.2 Gen 2x2)
• 1 x USB 3.2 Gen 2 Type-A (red)
• 4 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1
• 2 x SMA antenna connectors
• 1 x HDMI 2.0 port
• 1 x DisplayPort
• 1 x RJ-45 LAN port
• 3 x audio jacks

BIOS: 1 x 256 Mbit flash, AMI UEFI BIOS
Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Operating System Support: Windows 11 64-bit, Windows 10 64-bit
Form Factor: ATX (30.5cm x 24.4cm)
