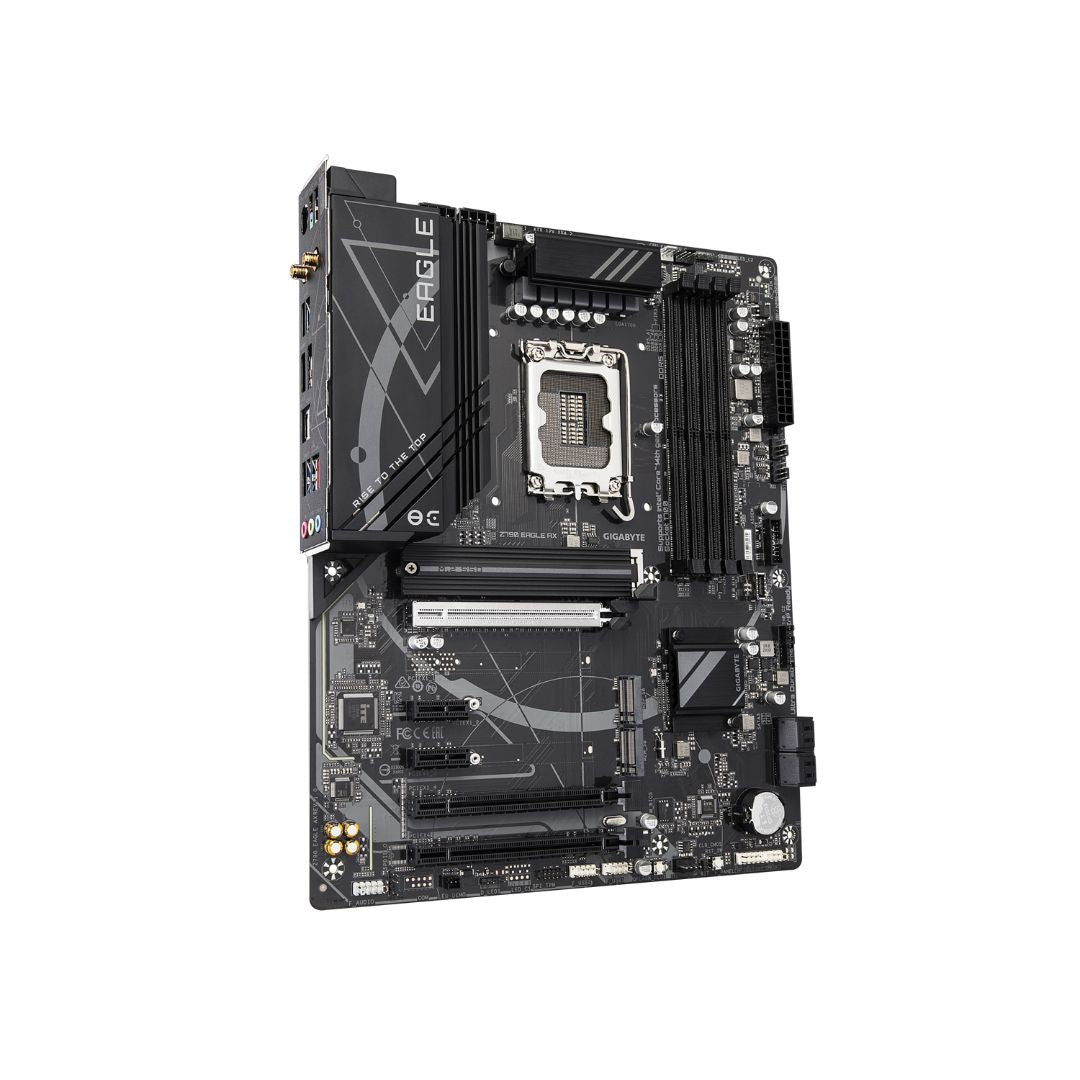

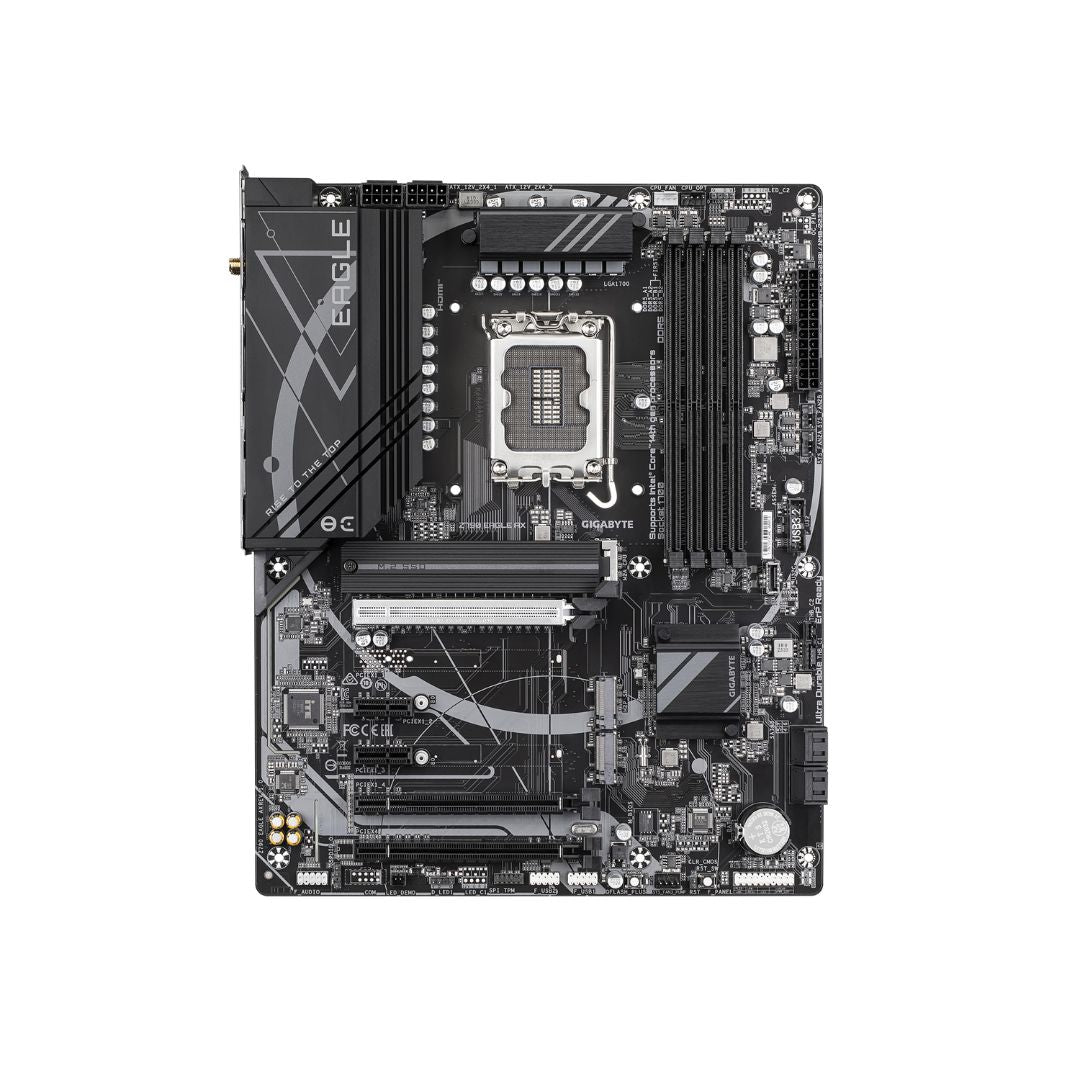

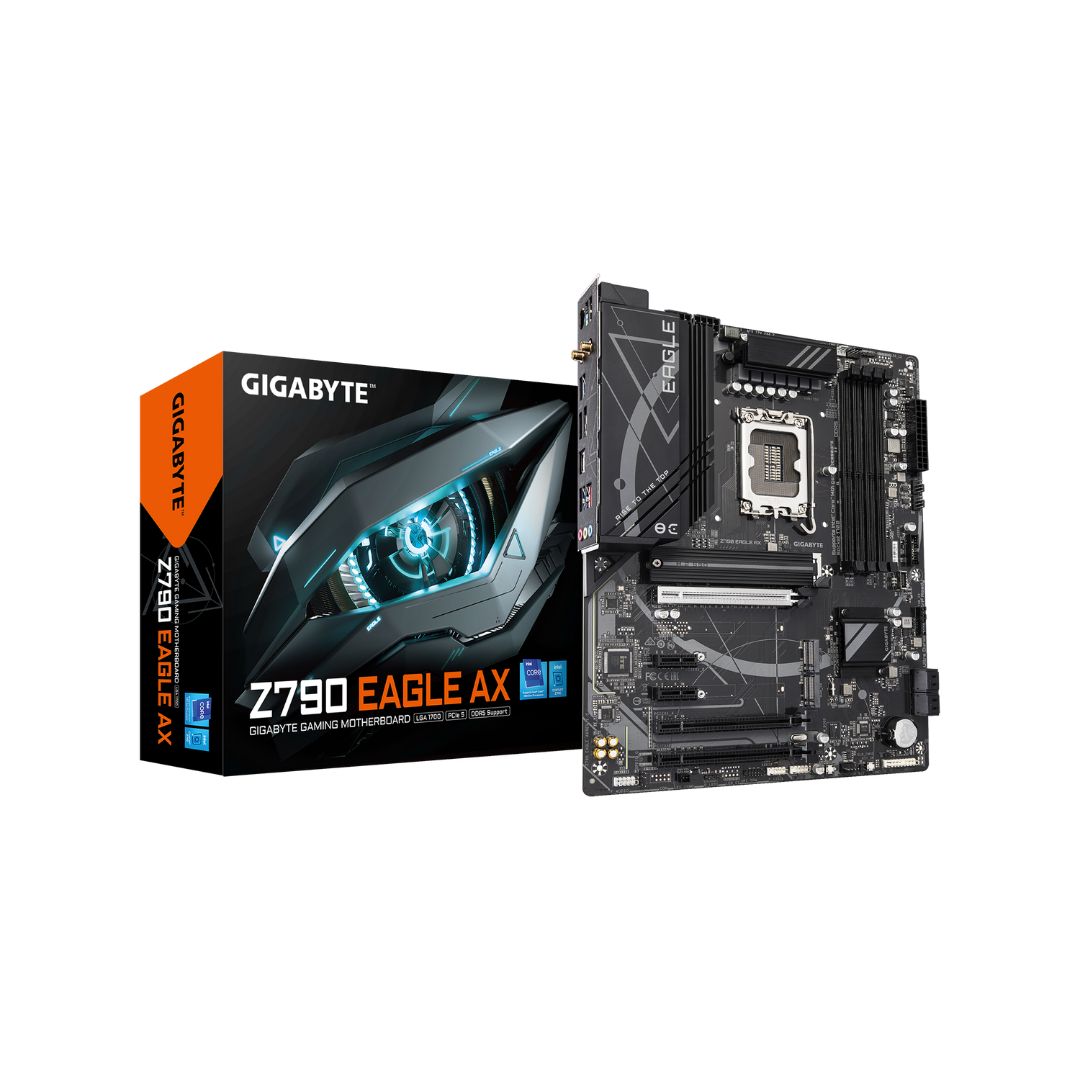

TJM Gigabyte Z790 EAGLE AX, WIFI 6E

Motherboard – Gigabyte Z790 EAGLE AX (WiFi 6E)

Chipset: Intel Z790
Socket: LGA1700 – Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold, and Celeron processors
Form Factor: ATX

Memory
• 4 x DDR5 DIMM slots – up to 256GB
• Dual channel architecture
• Supports speeds up to 7600MT/s (OC)
• Intel XMP 3.0 support

Graphics
• 1 x HDMI 2.1 (4096x2160@60Hz)
• 1 x DisplayPort 1.2 (4096x2304@60Hz)
• Integrated graphics support (depends on CPU)

Audio
• Realtek HD Audio Codec
• 2/4/5.1/7.1-channel support
• Optical S/PDIF out

Networking
• Realtek 2.5GbE LAN
• Intel Wi-Fi 6E AX211 (2.4/5/6GHz)
• Bluetooth 5.3

Expansion Slots
• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x4
• 2 x PCIe 3.0 x1

Storage
• 4 x M.2 PCIe 4.0 x4
• 4 x SATA III 6Gb/s
• RAID 0/1/5/10 support

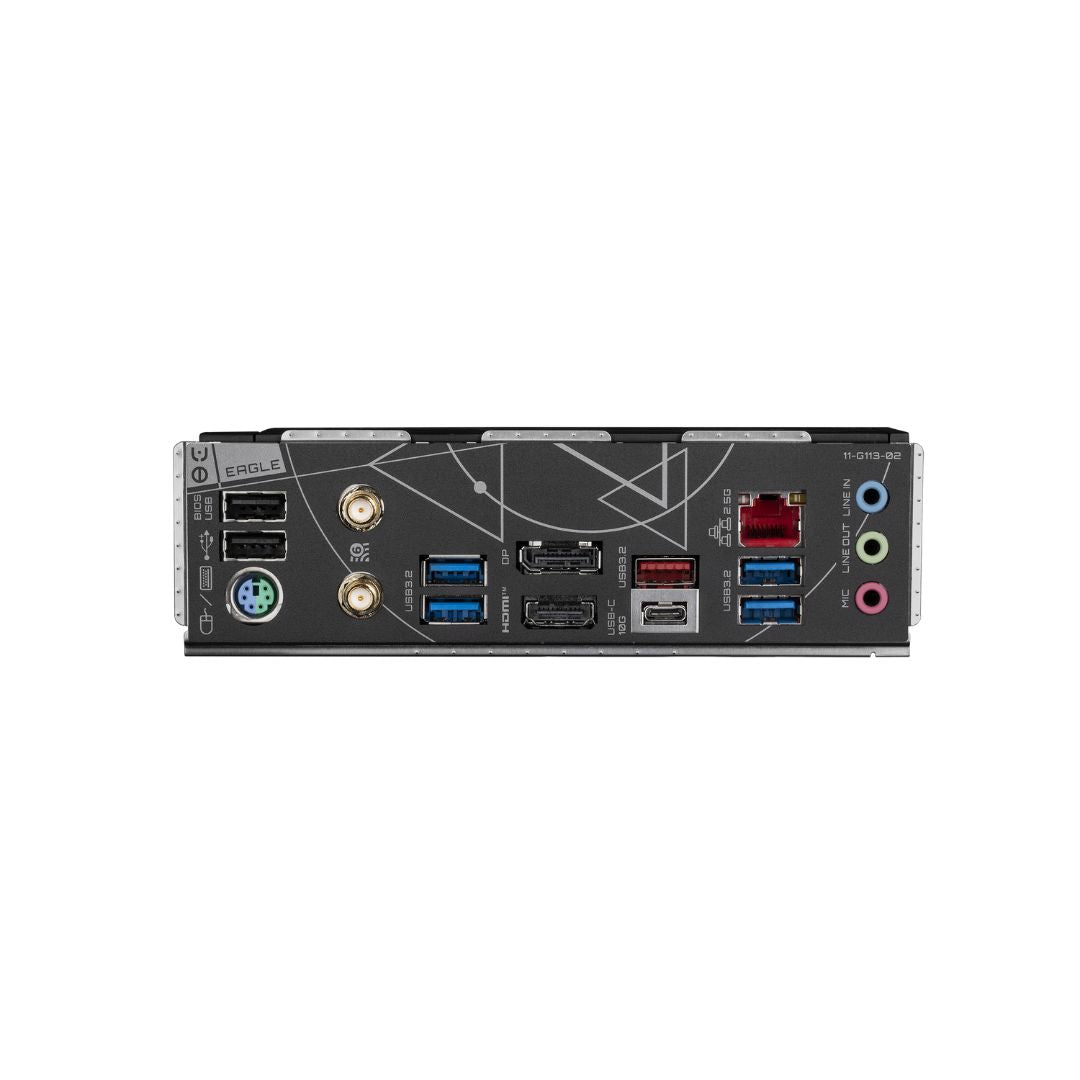

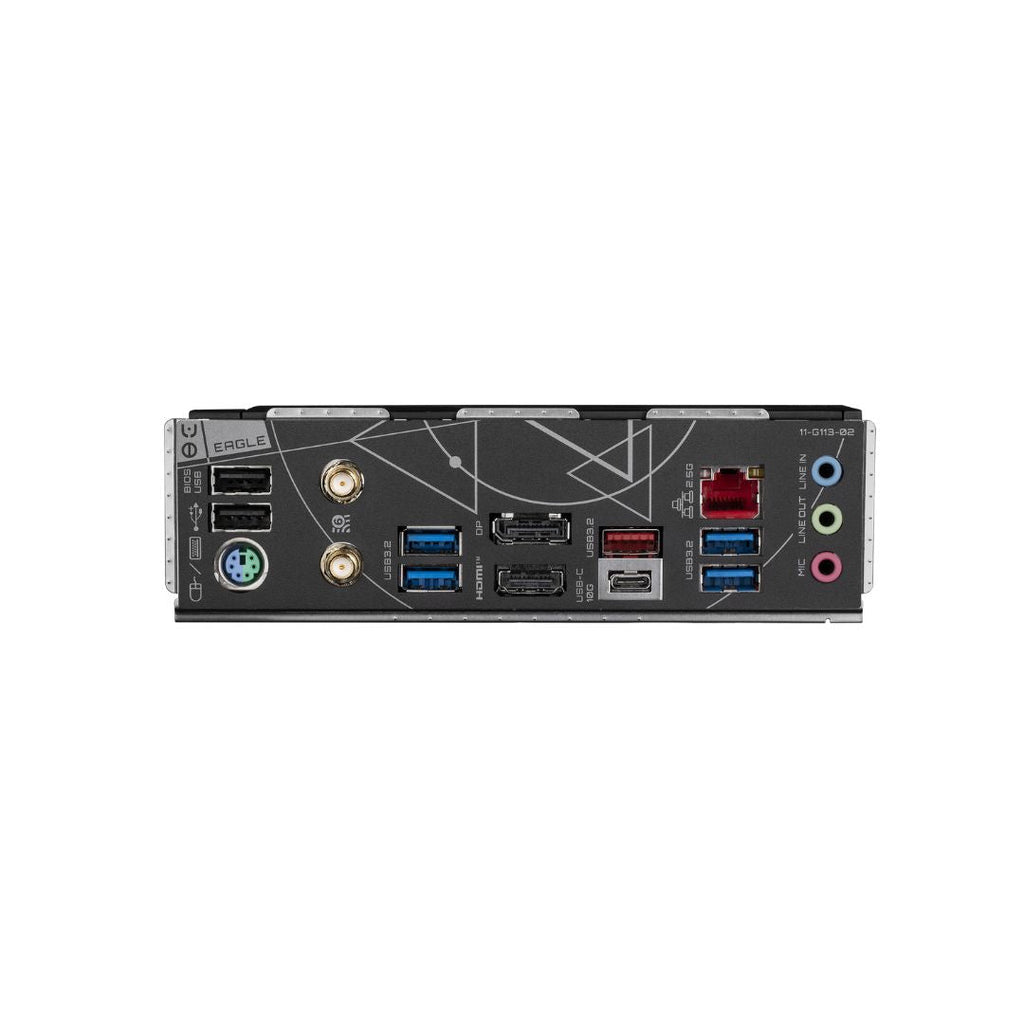

USB Ports
• Rear: USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0
• Internal: USB 3.2 Gen1, USB 2.0, USB Type-C header

Cooling & Features
• Smart Fan 6
• Enlarged MOSFET heatsinks
• M.2 Thermal Guard
• EZ-Latch PCIe & M.2
• Q-Flash Plus
• RGB Fusion – Addressable LED headers
