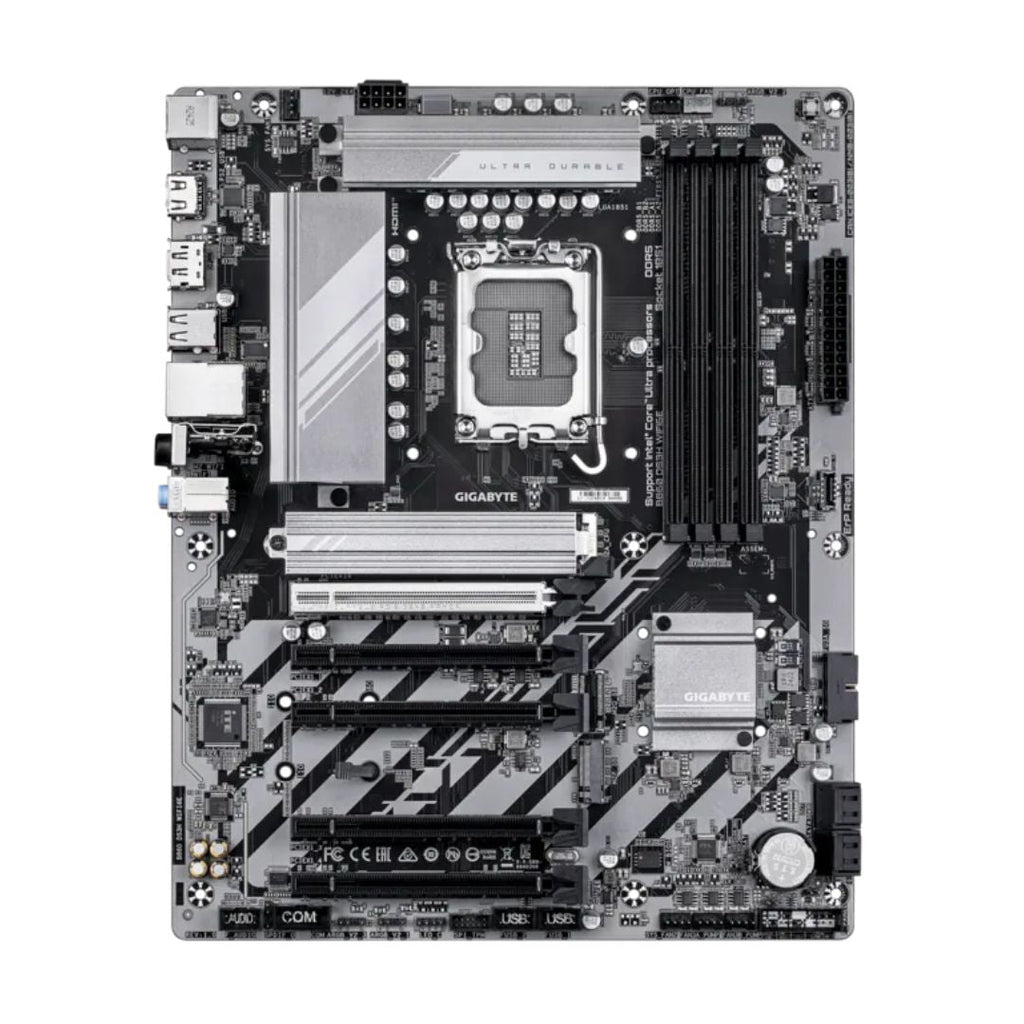

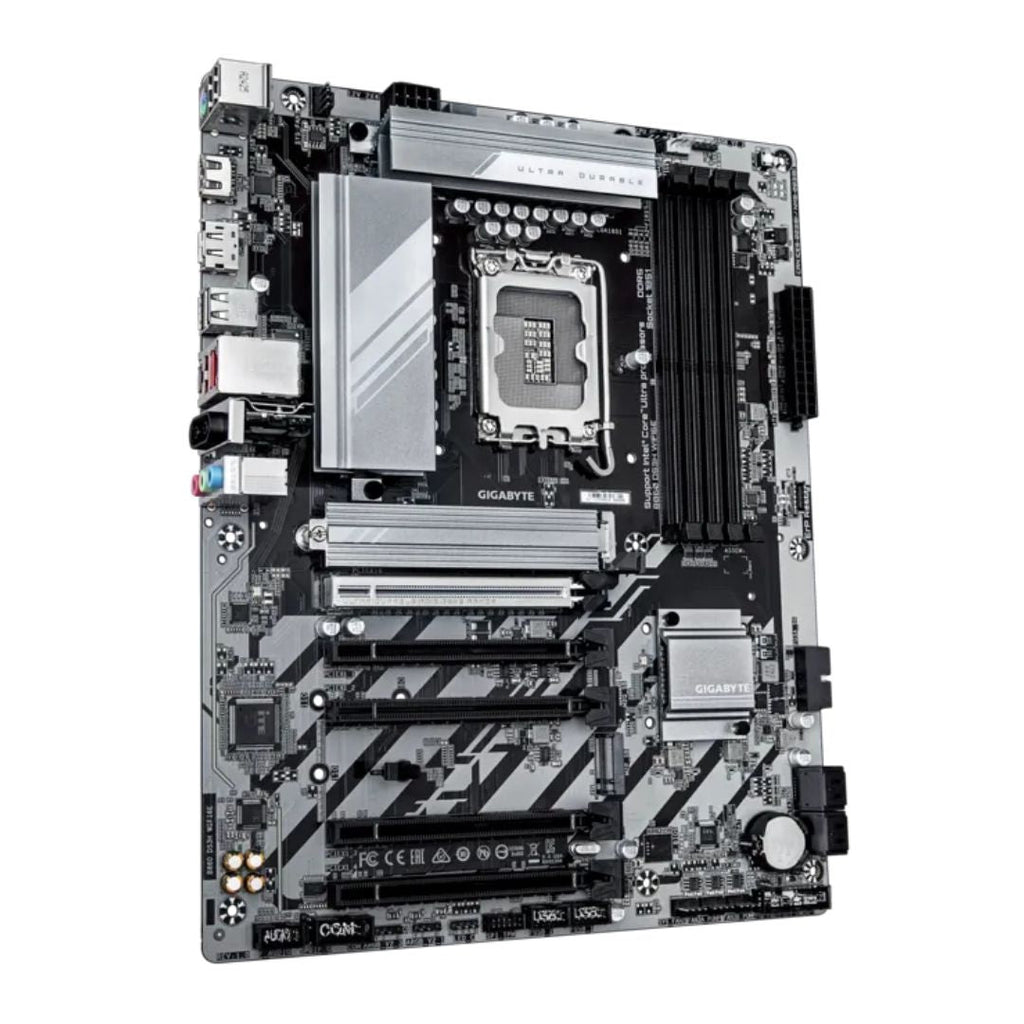

TJM Gigabyte B860 DS3H WIFI6E, Motherboard

Motherboard Specifications

• Model: Gigabyte UD B860 DS3H WIFI6E
• Form Factor: ATX
• Chipset: Intel B860 Express
• Socket: LGA1851
• CPU Support: Intel® Core Ultra 200 Series

Memory

• Type: DDR5
• Slots: 4 × DIMM
• Capacity: Up to 192 GB
• Speed: Up to DDR5‑8800 (OC)
• Features: Dual Channel, Intel® XMP 3.0

Storage

• M.2 Slots: 2 × PCIe 4.0 x4 (NVMe SSD)
• SATA Ports: 4 × SATA 6 Gb/s
• RAID Support: 0 / 1 / 5 / 10

Expansion

• GPU Slot: 1 × PCIe 5.0 x16
• Additional Slots: 1 × PCIe 4.0 x4, 2 × PCIe 3.0 x1

Connectivity

• LAN: Realtek 2.5 GbE RJ‑45
• Wireless: Intel® Wi‑Fi 6E + Bluetooth 5.3
• Audio: Realtek HD Audio, 3 × 3.5 mm jacks

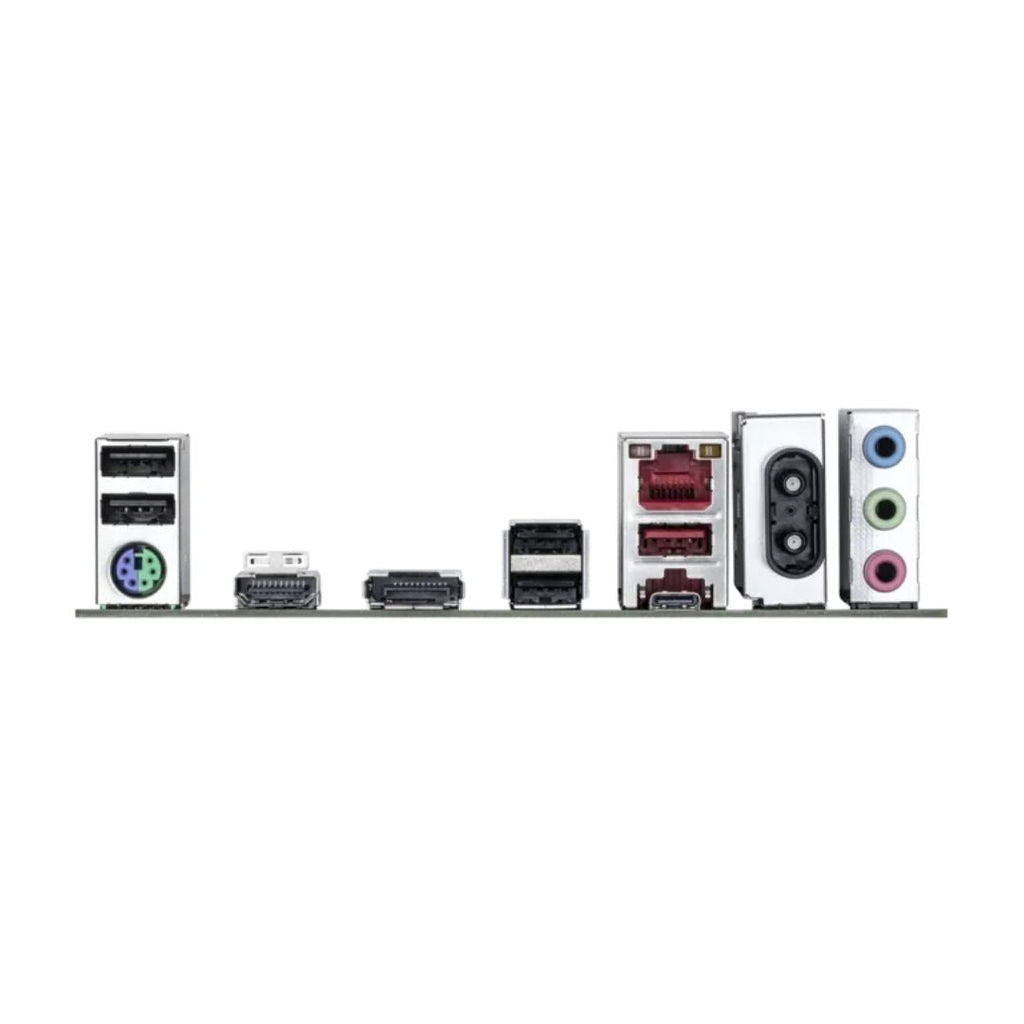

• USB Ports (Rear I/O):
  • 1 × USB 3.2 Gen2 Type‑C
  • 2 × USB 3.2 Gen1 Type‑A
  • 4 × USB 2.0 Type‑A
• Video Outputs:
  • 1 × HDMI 2.1 (4K@60Hz)
  • 1 × DisplayPort 1.4

Features

• BIOS: Q‑Flash support
• VRM: Enhanced 6+2+1 phase design
• Color: Black

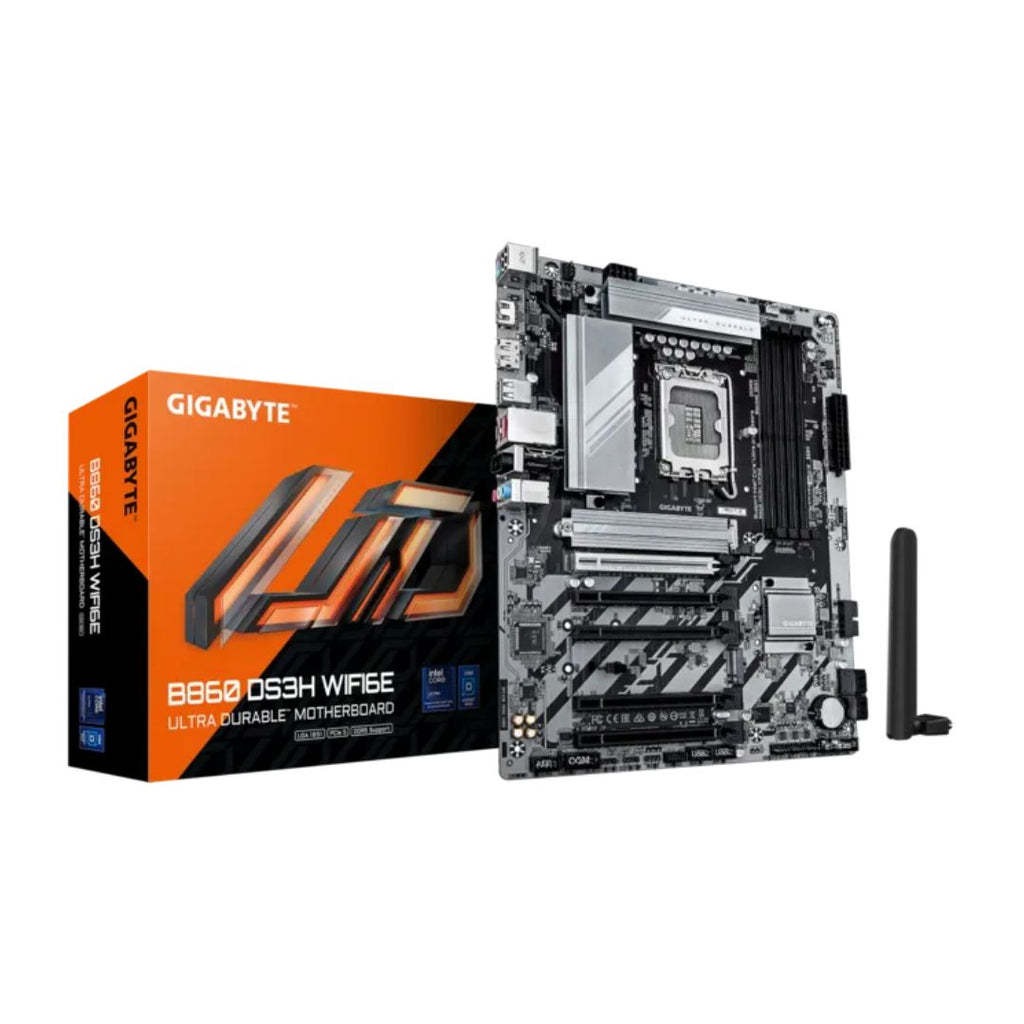

Package Contents

• Gigabyte UD B860 DS3H WIFI6E Motherboard × 1
• I/O Shield × 1
• User Manual × 1
