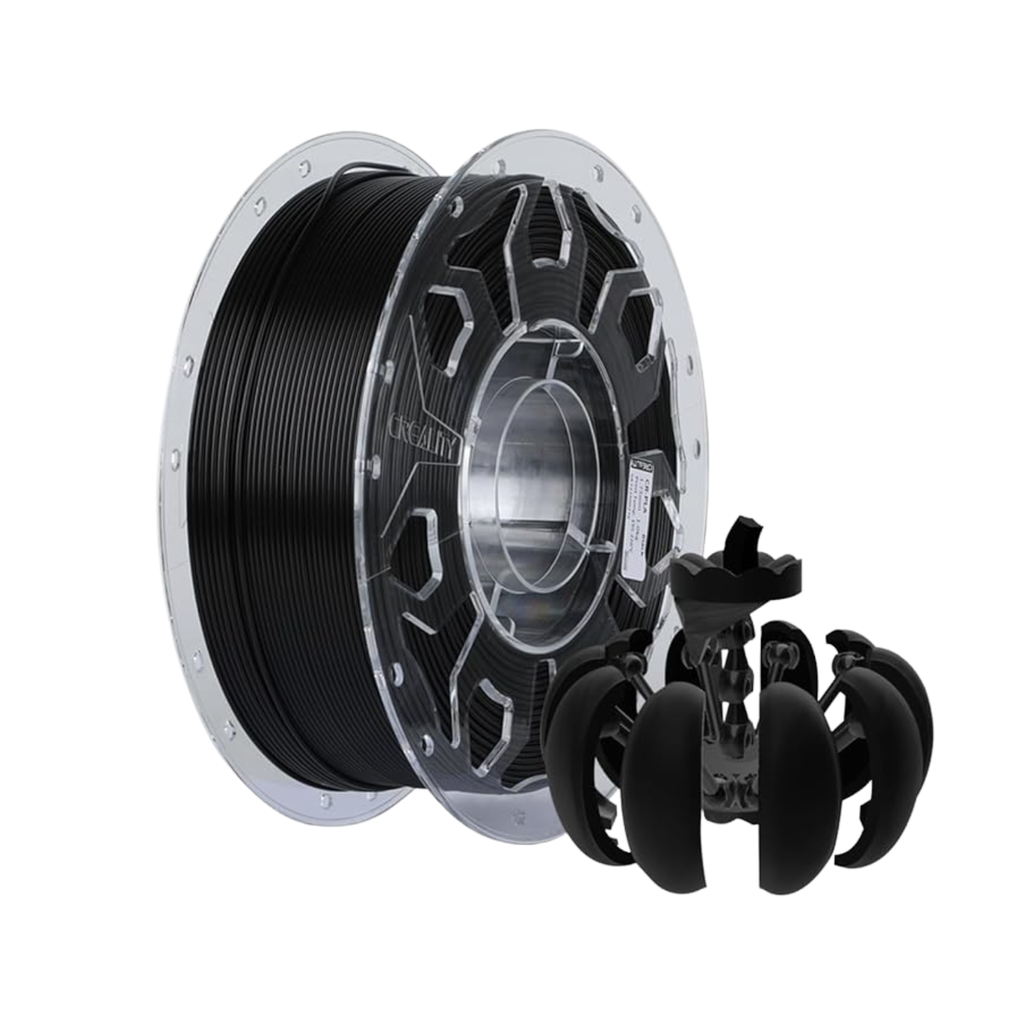

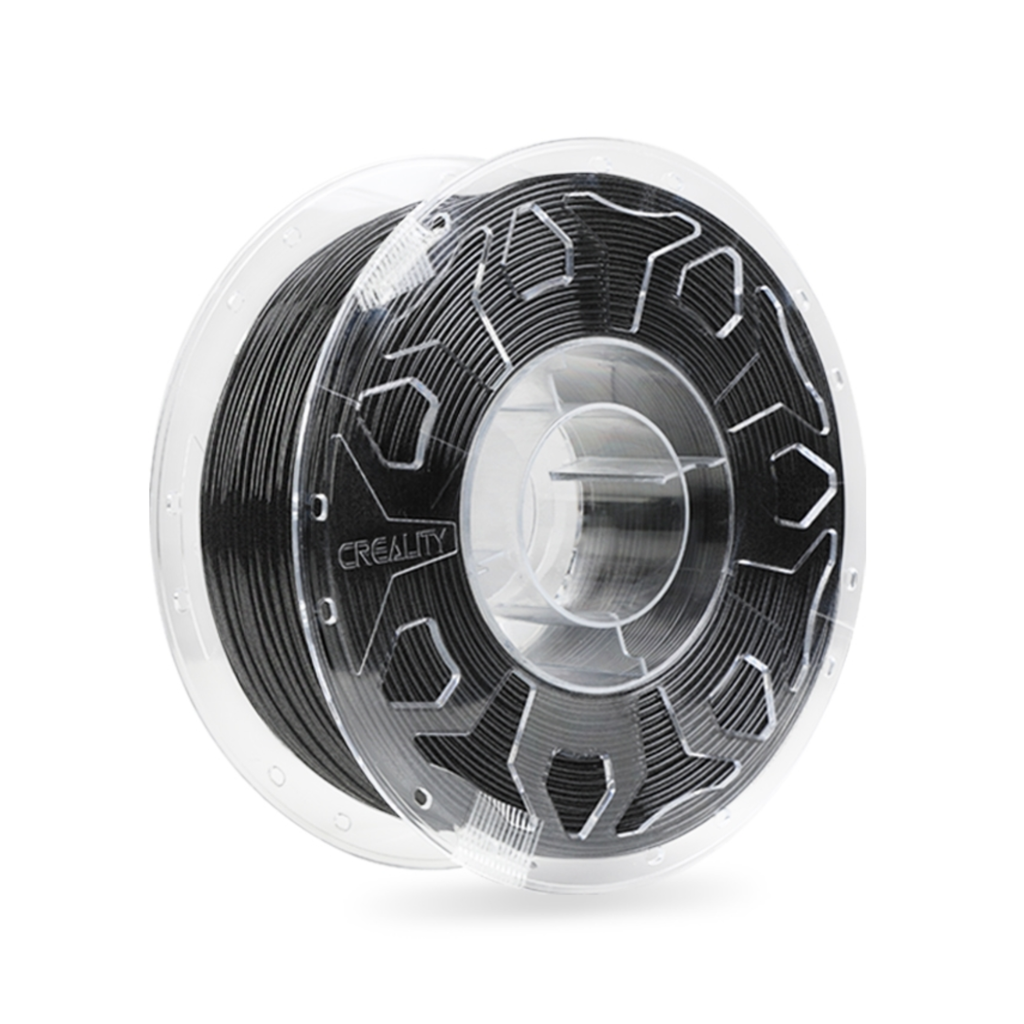

TJM Creality CR-PLA Carbon 3D Printing Filament 1KG

Material & Composition

Material Base: Polychromatic Acid (Standard PLA) Composite
Reinforcement: Infused with Carbon Fiber Particles (approx. 15% CF content)
Visual Finish: Premium matte texture (effectively minimizes visible layer lines)
Environmental Performance: Non-toxic, eco-friendly, and odorless during extrusion

Physical & Mechanical Properties

Filament Diameter: 1.75 mm
Dimensional Tolerance: ±0.03 mm
Net Filament Weight: 1.0 kg (2.2 lbs)
Material Density: 1.24 - 1.25 g/cm³
Tensile Strength (X-Y): 49 - 101 MPa (Significantly higher rigidity than standard PLA)
Elongation at Break: 6%
Bending Strength: 45 MPa
Bubble Performance: 100% Bubble-Free (Vacuum Sealed)

Recommended Printing Parameters

Nozzle (Extrusion) Temperature: 190 °C - 230 °C (Recommended baseline: 200 °C - 210 °C)
Heated Bed Temperature: Unheated to 60 °C (Recommended baseline: 50 °C)
Recommended Printing Speed: 40 - 80 mm/s
Cooling Fan: 100% (On)
Hardware Requirement: Due to the abrasive nature of carbon fiber, a hardened steel or wear-resistant nozzle (≥ 0.4 mm) is highly recommended to prevent premature wear on standard brass nozzles.

Spool & Packaging Specifications

Winding Quality: Full mechanical neat winding to eliminate overlaps and tangles
Packaging Type: Thoroughly dried and vacuum-sealed with an included desiccant pack
Spool Dimensions: 210 x 210 x 75 mm
Gross Package Weight: Approx. 1.15 - 1.29 kg

Compatibility & Application

Printer Compatibility: Universally compatible with 99% of open-frame or enclosed FDM 3D printers on the market utilizing 1.75mm diameter filament (including Creality, Ender, Prusa, Anycubic, and Bambu Lab)
Ideal Applications: Functional prototypes, structural housings, mechanical sub-assemblies, and drone parts requiring ultra-high rigidity, low warping, and lightweight stability

تنبيه مهم جداً لهذا المنتج:
هذا الفيلّيمنت مخلوط بألياف كربون حقيقية، لذلك هو مادة قاسية جداً وقد تسبب تآكل فوهة الطابعة (النوزل) النحاسية العادية وتوسيع فتحتها بسرعة كبيرة.

لحماية طابعتك وضمان أفضل جودة: يرجى استخدام نوزل فولاذي مصلد (Hardened Steel Nozzle) بقطر 0.4 مم أو أكبر عند طباعة هذه المادة.
