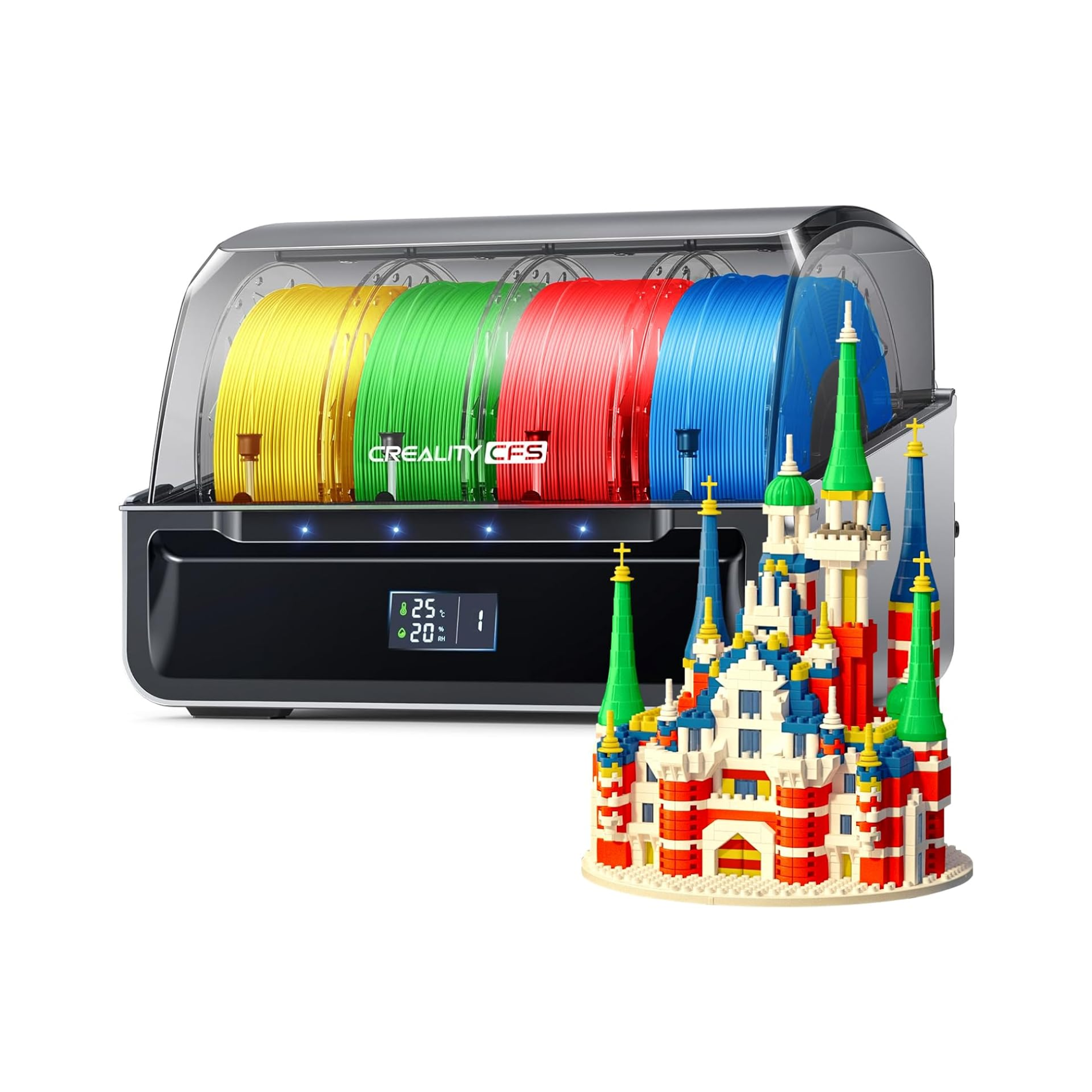

TJM Creality CFS Filament System (For K2 Printer)

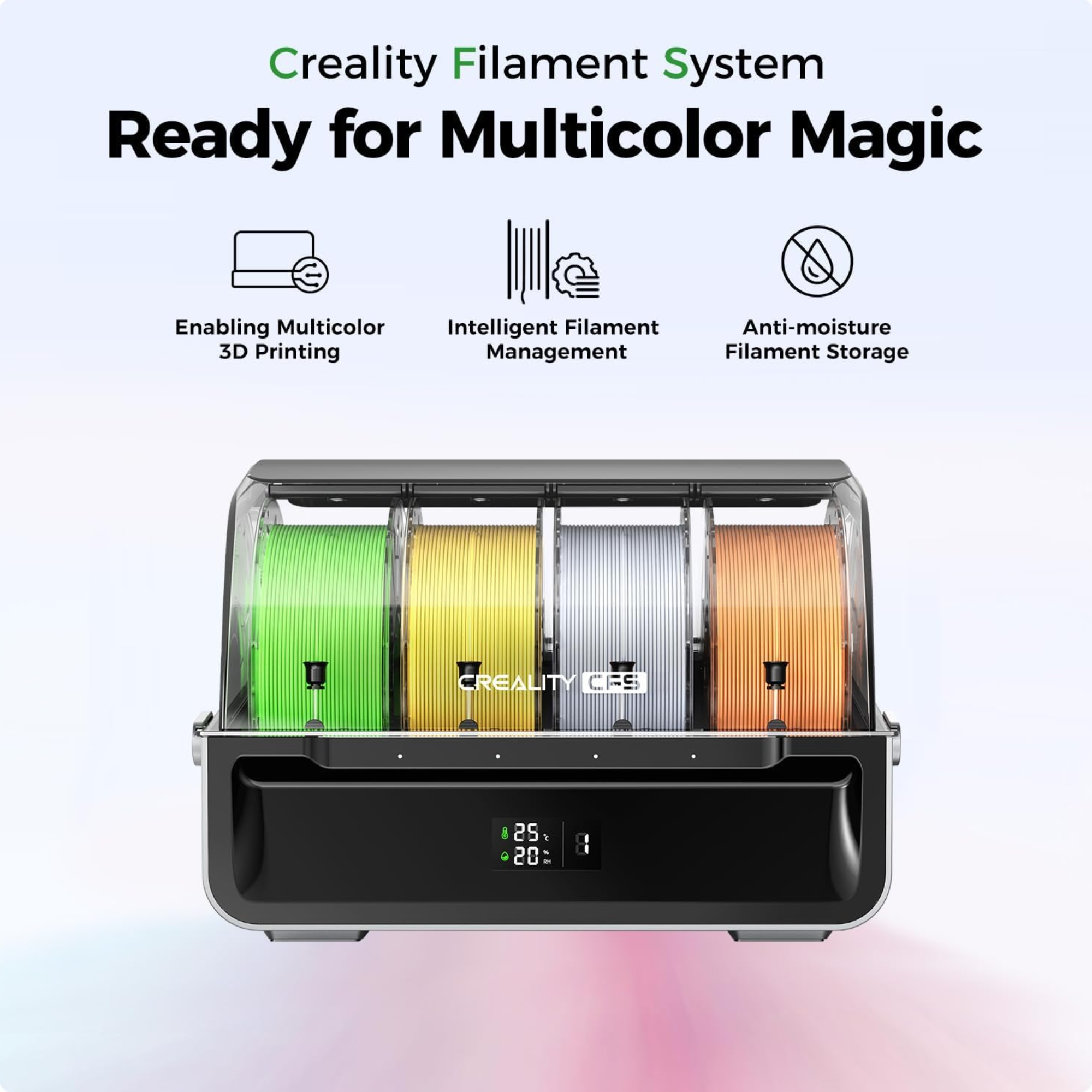

Functional Capabilities

Multicolor Printing: Supports up to 4-color printing per unit (can be daisy-chained for up to 16-color printing)
Automatic Loading & Unloading: Fully automated filament switching and loading system
Filament Backup: Automatic spool-switching when current filament runs out

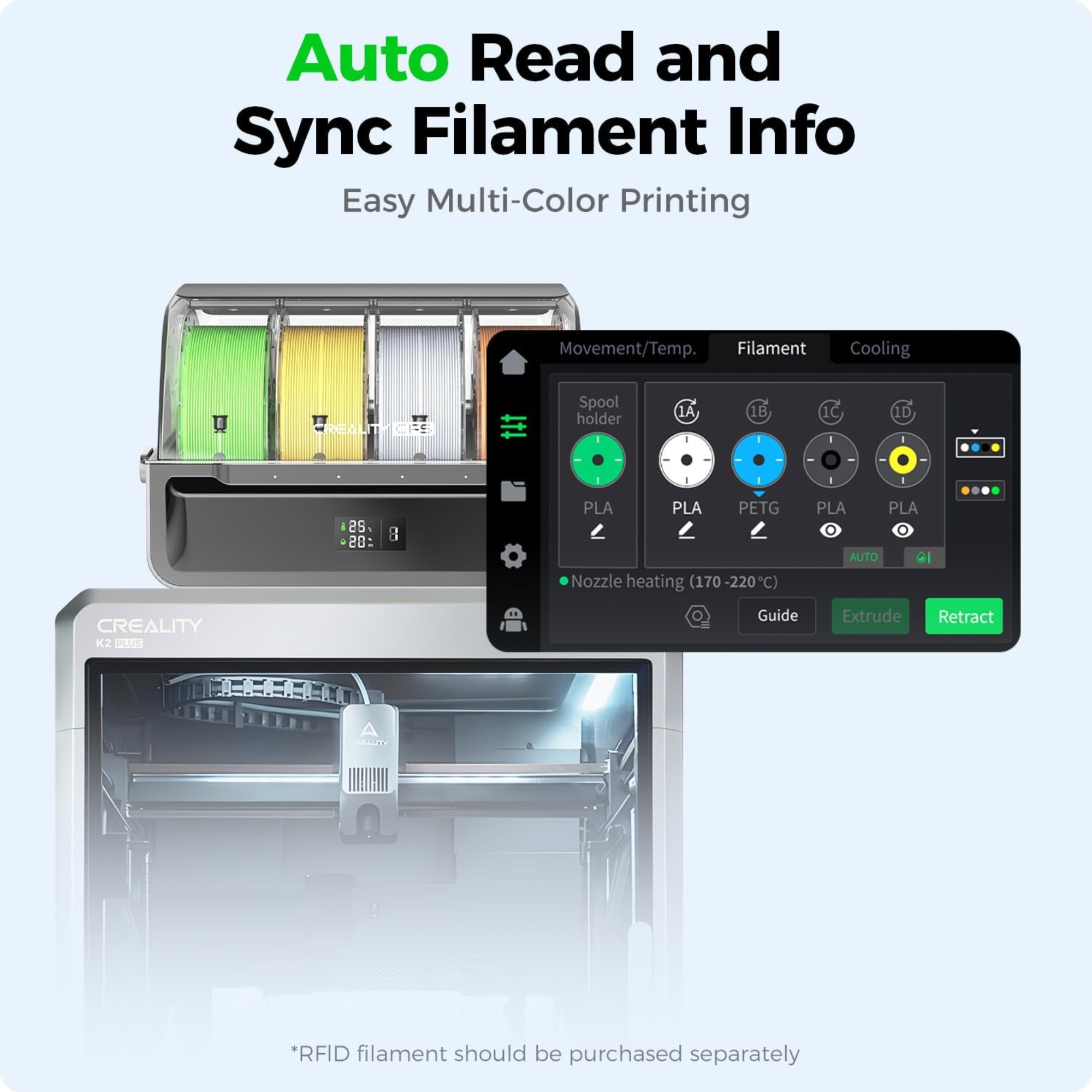

RFID Recognition: Smart RFID tag reading for automatic filament type and color configuration

Environmental Control & Storage

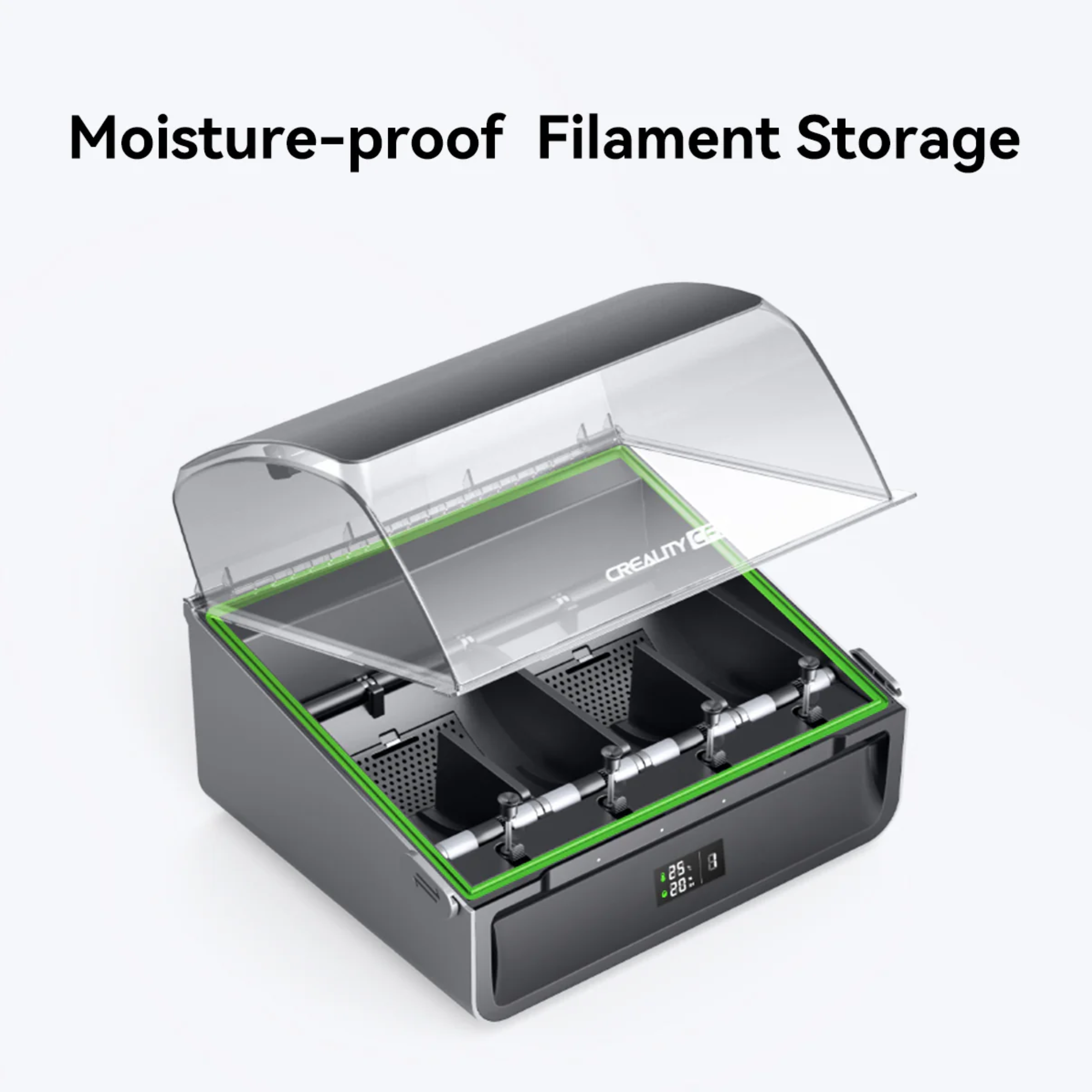

Enclosure Design: Sealed airtight structure to prevent ambient moisture absorption
Real-time Monitoring: Built-in digital display showing real-time temperature and humidity levels
Desiccant Storage: Integrated designated slots for silica/desiccant packs

Spool & Filament Compatibility

Supported Filaments: PLA, PETG, ABS, ASA, PA-CF, PLA-CF (Optimal for multi-color & support filaments)
Filament Diameter: 1.75 mm
Spool Capacity: Accommodates 4 x standard 1kg spools
Supported Spool Width: 40 to 68 mm
Supported Spool Diameter: 195 to 205 mm
Supported Spool Hub Diameter: >50 mm

Hardware & Connectivity

Interface Port: Creality 485 communication link
Internal Mechanism: Independent feeding motors and spring-loaded tensioners per slot
Status Indicators: LED status lights for each filament slot indicating loading/error states

Physical Specifications & Compatibility

Primary Hardware Compatibility: Designed for Creality K2 Plus / K2 Series ecosystem
Dimensions: 415 x 315 x 245 mm
Net Weight: Approx. 5.1 kg
