TJM Bambu Lab ABS Red 3D Printing Filament 1KG

Material & Mechanical Engineering

Material Type: Premium Formulated Acrylonitrile Butadiene Styrene (ABS)
Key Optimization: Engineered to minimize warping, shrinking, and cracking compared to generic industrial ABS, offering superior structural stability and dimensional accuracy.
Impact & Heat Resistance: Exceptional impact toughness and high mechanical durability, making it ideal for functional engineering prototypes and stress-bearing mechanical parts.
Post-Processing: Highly receptive to sanding, painting, and chemical vapor smoothing (Acetone smoothing) for a perfectly glossy surface finish.

Physical & Mechanical Properties

Filament Diameter: 1.75 mm
Dimensional Tolerance: ±0.03 mm
Net Filament Weight: 1.0 kg (2.2 lbs)
Density: 1.05 g/cm³
Tensile Strength (X-Y): 37 ± 3 MPa
Bending Strength (X-Y): 67 ± 4 MPa
Impact Strength (XY-Toughness): 17.5 ± 1.6 kJ/m²
Heat Deflection Temperature (HDT): 87 °C (At 0.45 MPa)

Recommended Printing Parameters

Nozzle (Extrusion) Temperature: 240 °C - 270 °C (Recommended baseline: 250 °C - 260 °C)
Heated Bed Temperature: 90 °C - 100 °C (High bed heat is mandatory)
Chamber Temperature: Enclosed printing chamber required (Active or passive heat retaining environment)
Recommended Printing Speed: Max 200 - 250 mm/s
Compatible Build Surfaces: Textured PEI Plate, Smooth PEI Plate, High Temperature Plate (Bambu Liquid Glue/Glue Stick recommended as a release agent/adhesion helper)

Hardware Compatibility & Eco-System

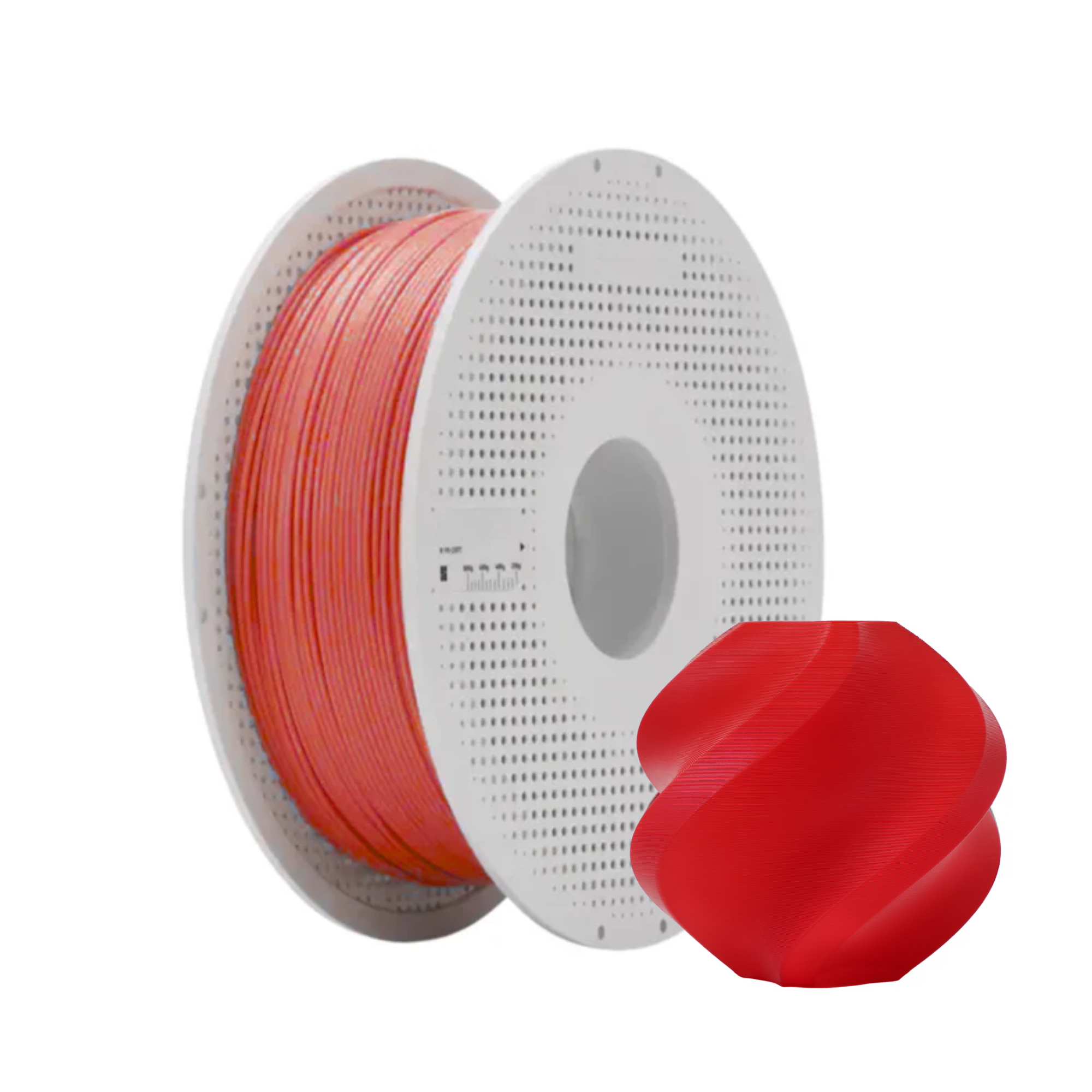

Package Type: Full Spool Package (Includes 1 x Genuine Bambu Reusable Spool made of high-temperature resistant ABS up to 70 °C)
Smart Detection: Built-in active RFID chip automatically syncs exact color, material profile, and optimized speed settings with Bambu Lab AMS systems upon loading.
Air Filtration: Enclosed carbon-activated or HEPA filtration system is highly recommended due to VOC emissions during printing.

Storage & Drying Guidelines

Moisture Sensitivity: High (Absorbs ambient moisture leading to brittle prints and severe popping/stringing)
Drying Requirements: Blast drying oven at 80 °C for 8 hours, or Bambu X1/P1 series heatbed at 90 - 100 °C for 12 hours.
